AG1S022E - Panasonic

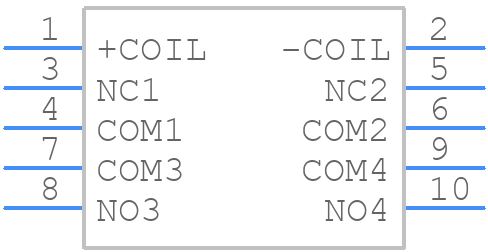

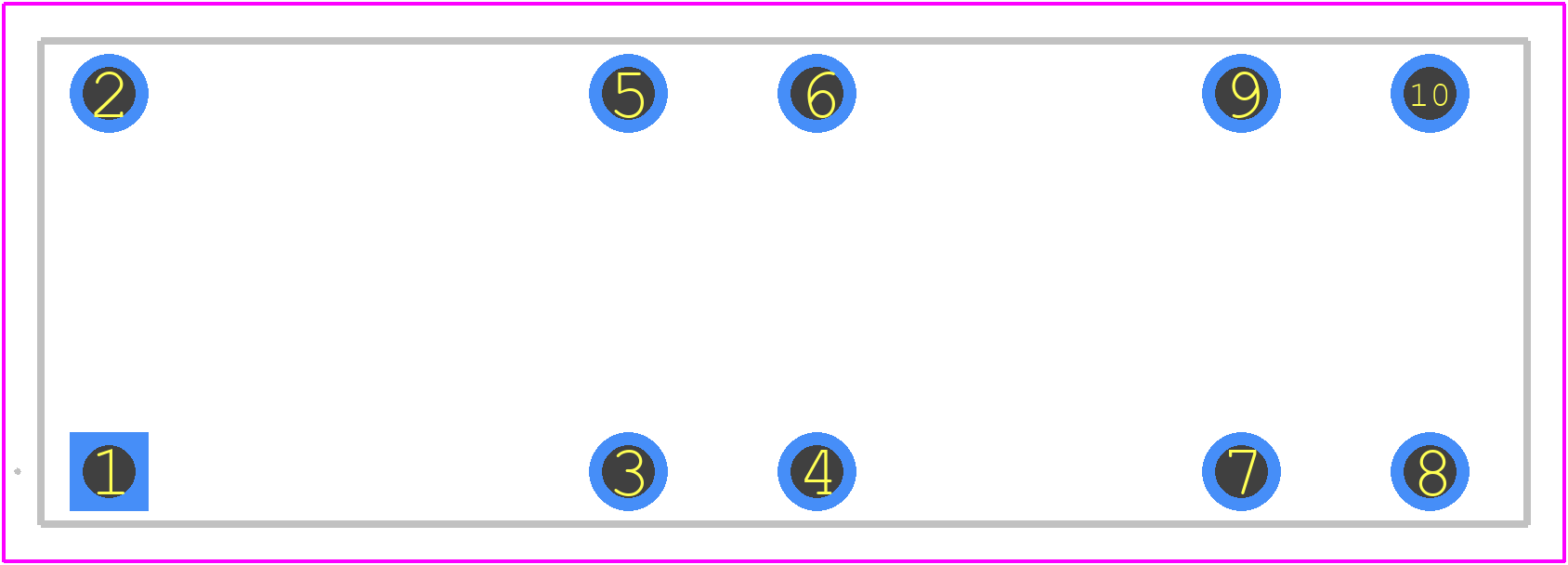

AG1S022E Details

• Manufacturer Part Number:

  AG1S022E

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• Body Breadth:

  13 mm

• Body Height:

  24 mm

• Body Length or Diameter:

  40 mm

• Coil Current(DC)-Max:

  0.015 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  360 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  1600 Ω

• Coil Voltage(DC)-Max:

  26.4 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  6A@250VAC

• Contact Current(AC)-Max:

  6 A

• Contact Current(DC)-Max:

  6 A

• Contact (DC) Max Rating R Load:

  6A@125VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  125 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  10

• Operate Time:

  20 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  40mm x 13mm x 24mm

• Reference Standard:

  CQC; CUL; S-MARK; TUV; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM A, 2 FORM B

• Relay Function:

  4PST

• Relay Type:

  SAFETY RELAY

• Release Time:

  20 ms

• Surface Mount:

  NO

• Terminal Length:

  0.0035052070104140214 inch

• Termination Type:

  SOLDER
