AG1S038 - Panasonic

Description: Slim type Safety relay compliant with Safety standards ,3 Form A 1 Form B ,21 V DC

Download AG1S038 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AG1S038 model

Email notifications will be applied after download.

Send part feedback

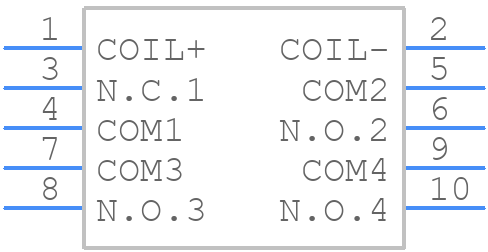

Symbol

AG1S038 - Panasonic - PCB symbol

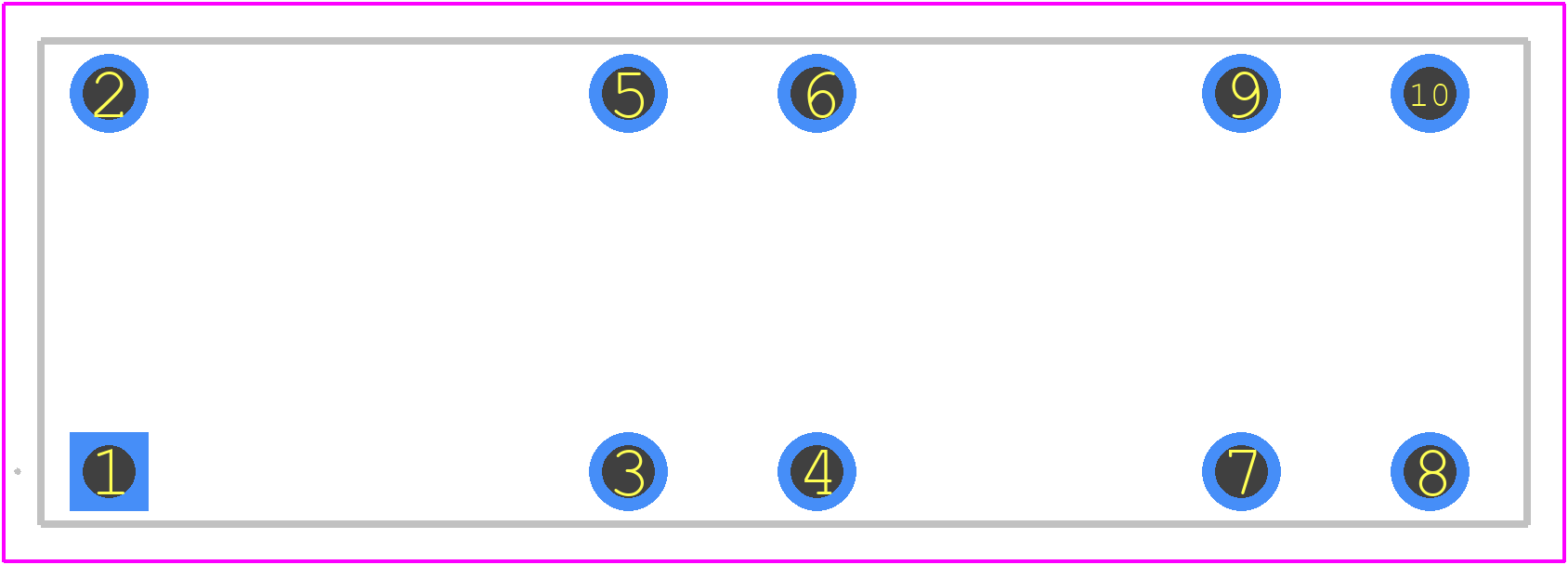

PCB Footprints

AG1S038 - Panasonic PCB footprint - Other - Other - AG1S038-2

3D Models

AG1S038 - Panasonic - 3D model - Other - AG1S038-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG1S038
Part Number AG1S038
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AG1S038-2
Released Date Oct 16, 2025
Last Modified Date Mar 14, 2026 11:53 AM UTC
Pinout / Pin List Click Here (Member Only)

AG1S038 Details

Manufacturer Part Number:
AG1S038
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AG1S038 Overview

Use the download button to access the AG1S038 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AG1S0, or try a keyword search, such as Circuit Breaker
