AG1S122E - Panasonic

Description: Slim type Safety relay compliant with Safety standards

Download AG1S122E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AG1S122E model

Email notifications will be applied after download.

Send part feedback

Symbol

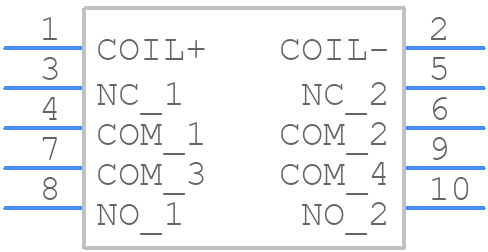

AG1S122E - Panasonic - PCB symbol

PCB Footprints

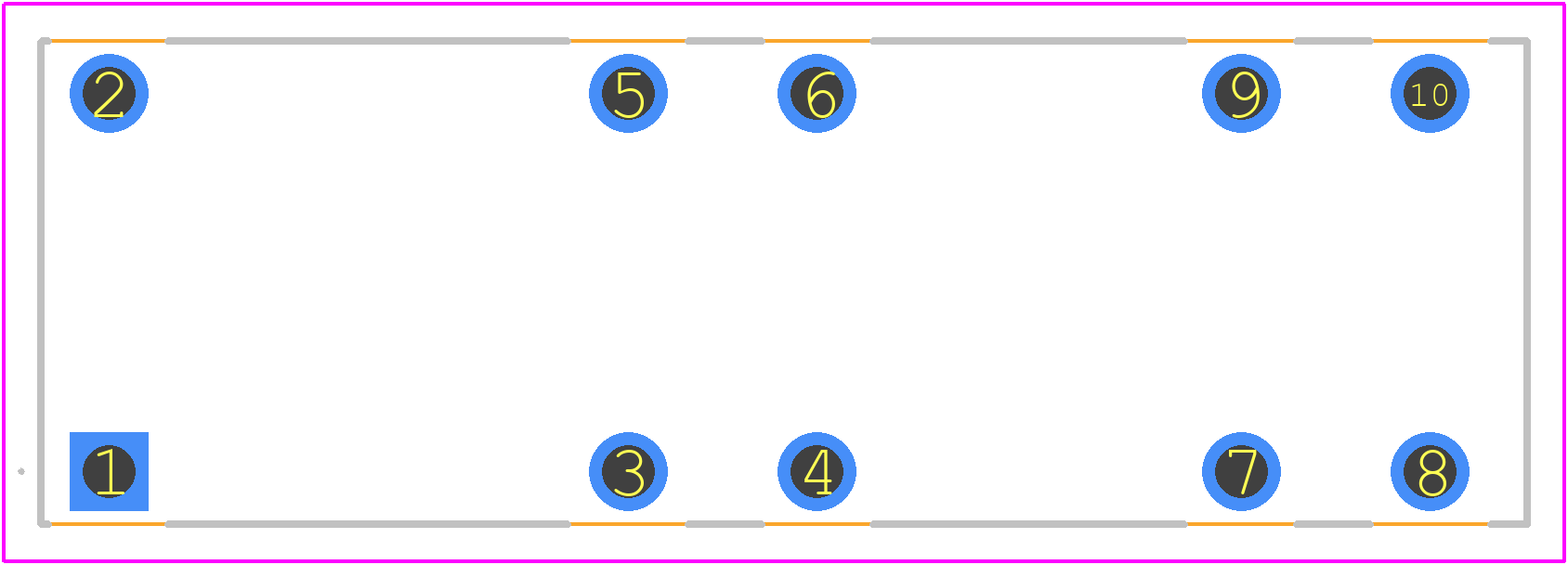

AG1S122E - Panasonic PCB footprint - Other - Other - SFS2-L-DC24V-1

3D Models

AG1S122E - Panasonic - 3D model - Other - SFS2-L-DC24V-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG1S122E
Part Number AG1S122E
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - SFS2-L-DC24V-1
Released Date Oct 16, 2025
Last Modified Date Jan 21, 2026 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

AG1S122E Details

Manufacturer Part Number:
AG1S122E
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AG1S122E Overview

Use the download button to access the AG1S122E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AG1S1, or try a keyword search, such as Special Relays
