AG1S132E - Panasonic

Description: Safety Relays SF RELAYS Slim type Standard (Without LED indication) 3 Form A 1 Form B 24 V DC 4 poles

Download AG1S132E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AG1S132E model

Email notifications will be applied after download.

Send part feedback

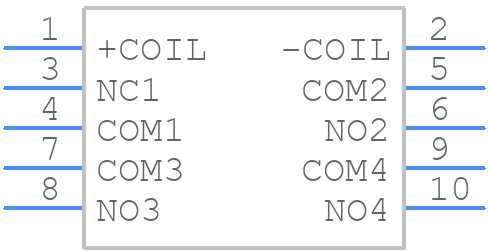

Symbol

AG1S132E - Panasonic - PCB symbol

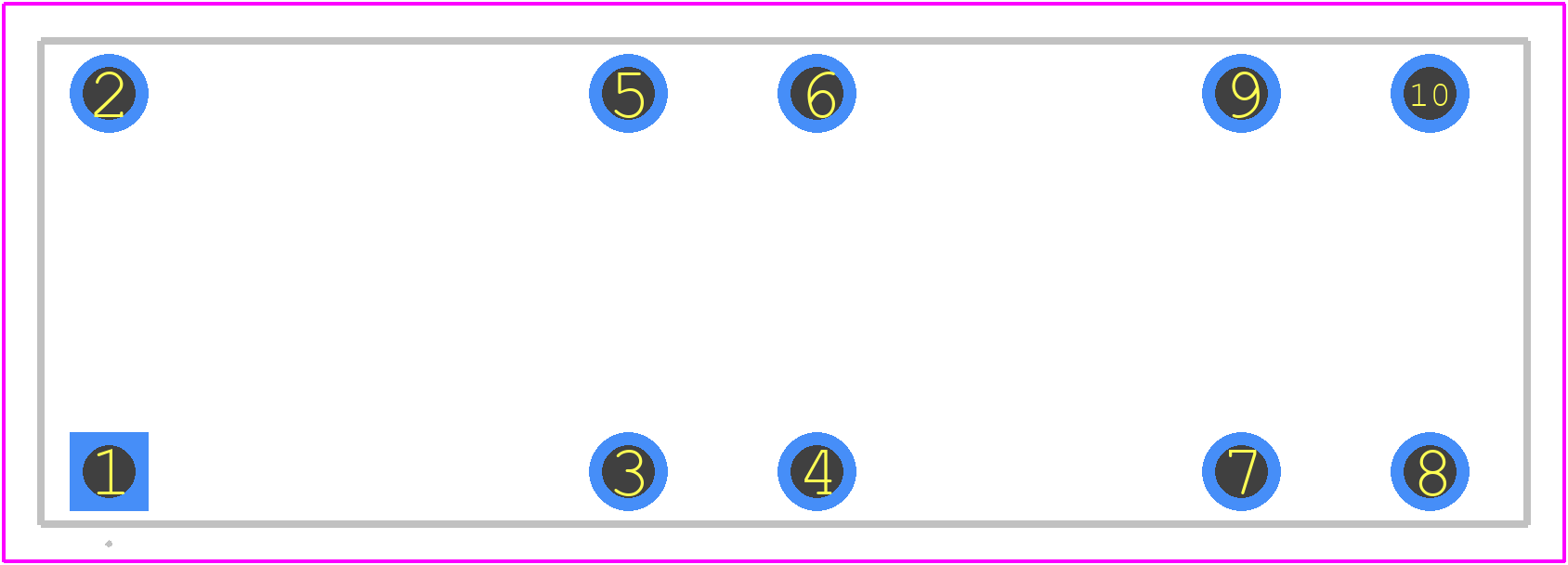

PCB Footprints

AG1S132E - Panasonic PCB footprint - Other - Other - AG1S132E-1

3D Models

AG1S132E - Panasonic - 3D model - Other - AG1S132E-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG1S132E
Part Number AG1S132E
Manufacturer Panasonic
Pin Count 10
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AG1S132E-1
Released Date Nov 12, 2025
Last Modified Date Dec 9, 2025 9:57 AM UTC
Pinout / Pin List Click Here (Member Only)

AG1S132E Details

Manufacturer Part Number:
AG1S132E
Manufacturer:
Panasonic Electronic Components
