- Part Number AG203-63G
- Manufacturer Qorvo
- Pin Count 6
- Part Category Integrated Circuit
- Package Category SOT23 (6-Pin)
- Footprint Name SOT23 (6-Pin) - SOT23-6
- Released Date Nov 16, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AG203-63G Details
-
Manufacturer Part Number:
AG203-63G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOT-363, 6 PIN
-
Country Of Origin:
Malaysia
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
6.83
-
Additional Feature:
HIGH RELIABILITY
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
AG203-63G Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad or heat sink for high-power applications.
-
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a 50-ohm system impedance and ensure a good return loss (>10 dB) for maximum gain and efficiency.
-
Operate the device within the recommended temperature range (-40°C to 85°C) and avoid exceeding the maximum junction temperature (150°C). Ensure a stable power supply and avoid electrical overstress.
-
Use a shielded enclosure, ensure good PCB layout and grounding, and consider adding EMI filters or absorbers. Follow FCC and CE regulations for EMC compliance.
-
The AG203-63G is suitable for wireless infrastructure, small cells, and 5G massive MIMO applications. It can also be used in radar, satellite communications, and other high-frequency systems.
Trust Checks
Community Provided
System Verified
Community Approved
AG203-63G Overview

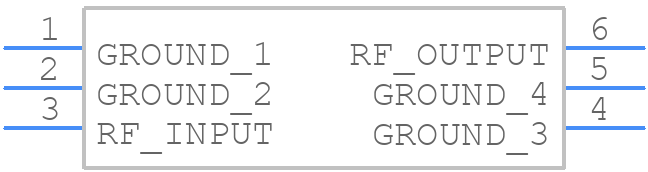

Use the download button to access the AG203-63G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AG203,
or try a keyword search, such as RF/Microwave Amplifiers
