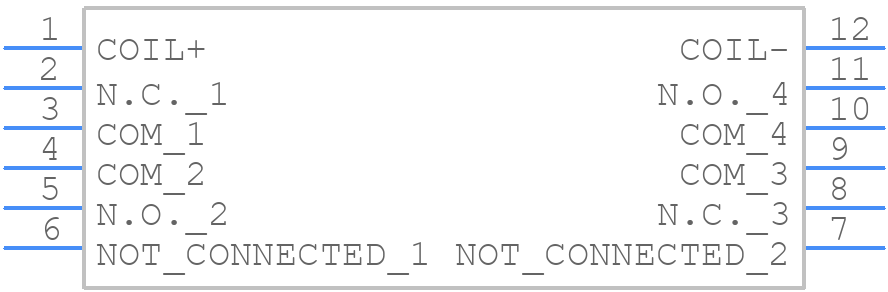

Symbol

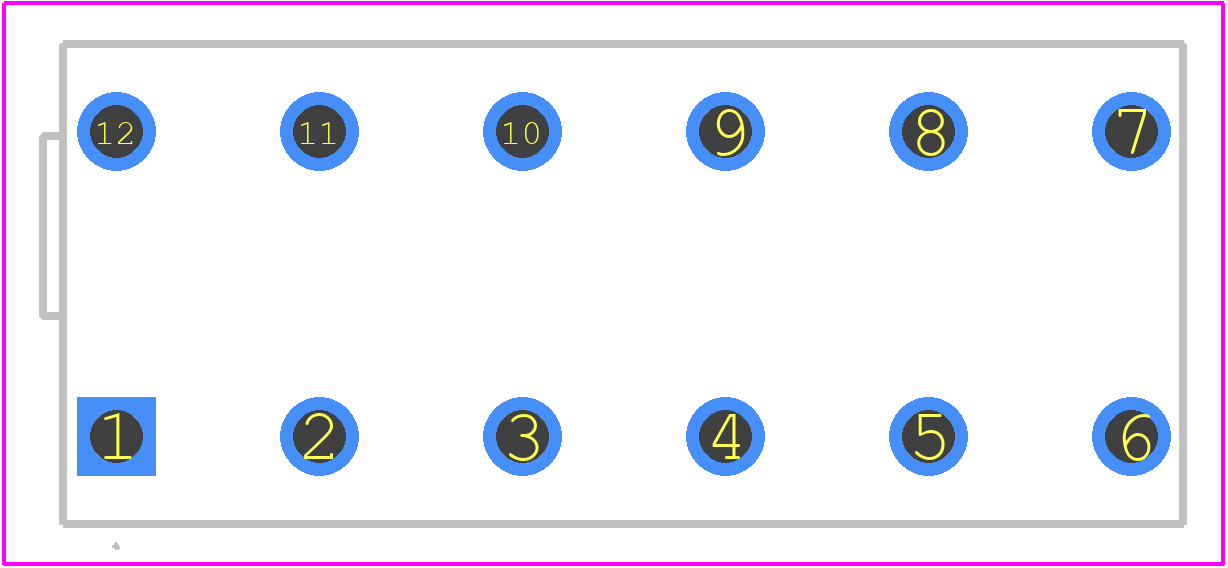

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AG302960
- Part Number AG302960
- Manufacturer Panasonic
- Pin Count 12
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - AG302960-2
- Released Date Jul 12, 2024
- Last Modified Date Apr 9, 2026 2:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
AG302960 Details
-
Manufacturer Part Number:
AG302960
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
7
-
Relay Type:
POWER/SIGNAL RELAY
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
AG302960 Overview
Use the download button to access the AG302960 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AG302,
or try a keyword search, such as Power/Signal Relays
