AG324160 - Panasonic

Description: Power Relays ( Over 2 A ) S RELAYS 4 Form A 3 V DC 2 66.7 mA 45 Ω coil latching

Download AG324160 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AG324160 model

Email notifications will be applied after download.

Send part feedback

Symbol

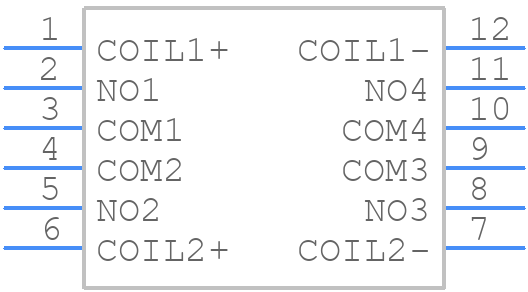

AG324160 - Panasonic - PCB symbol

PCB Footprints

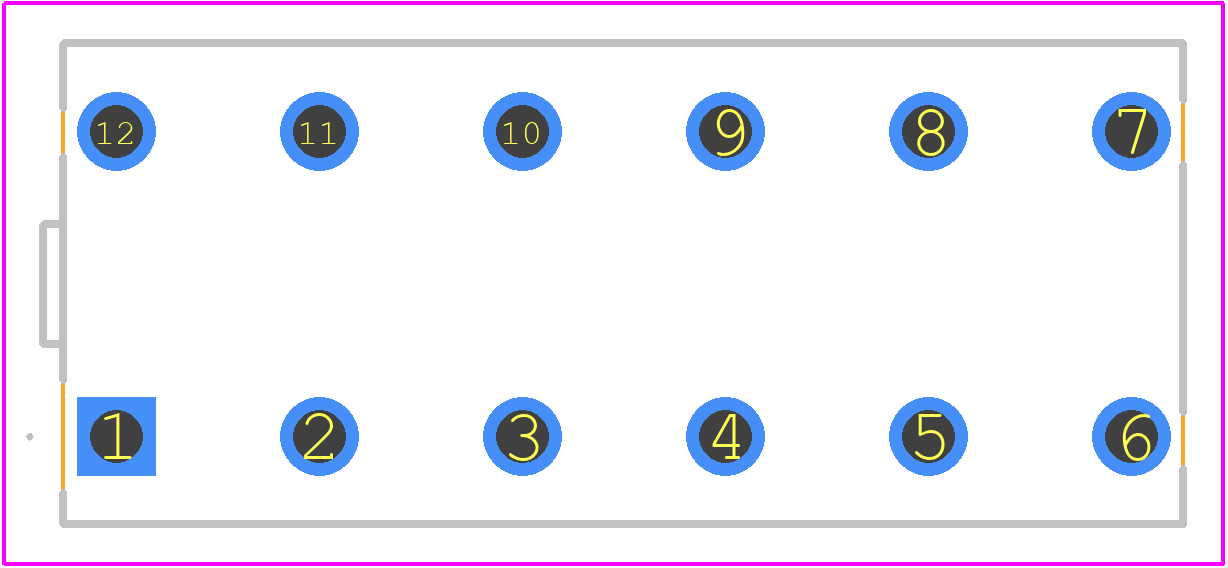

AG324160 - Panasonic PCB footprint - Other - Other - AG324160-5

3D Models

AG324160 - Panasonic - 3D model - Other - AG324160-5

Datasheet Download Datasheet
Stock & Prices Price & Stock for AG324160
Part Number AG324160
Manufacturer Panasonic
Pin Count 12
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AG324160-5
Released Date Nov 13, 2025
Last Modified Date Jul 14, 2026 5:06 AM UTC
Pinout / Pin List Click Here (Member Only)

AG324160 Details

Manufacturer Part Number:
AG324160
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
YTEOL:
7

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AG324160 Overview

Use the download button to access the AG324160 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AG324, or try a keyword search, such as Quartz Crystals

Parts related to AG324160

Showing 0 results
