AG4MCCH - Amphenol

Description: XLR Connectors CHASIS CONN CIR MTL 4 ML CONT NI PLTD

Download AG4MCCH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AG4MCCH - Amphenol - PCB symbol
click to zoom

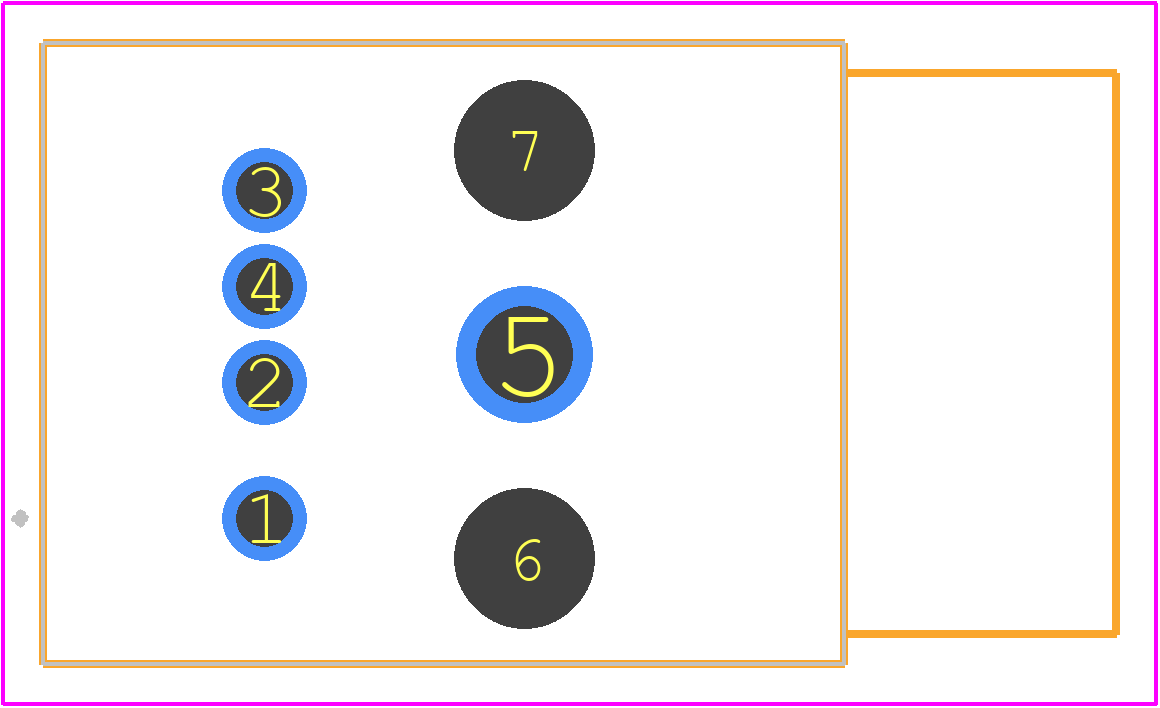

PCB Footprints
AG4MCCH - Amphenol PCB footprint - Other - Other - AG4MCCH
click to zoom
3D Models
AG4MCCH - Amphenol - 3D model - Other - AG4MCCH
click to zoom

AG4MCCH Details

  • Manufacturer Part Number:

    AG4MCCH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.597 inch

  • Body Depth:

    1.056 inch

  • Body Length:

    0.61 inch

  • Configuration:

    1X1 HORIZONTAL

  • Connector Type:

    MINI XLR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1500VDC V

  • Durability:

    5000 Cycles

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYPHENYLENE SULPHIDE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number of Poles:

    4

  • Number of Ports:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    5 A

  • Shell Finish:

    NICKEL

  • Terminal Length:

    0.098 inch

  • Termination Type:

    SOLDER

AG4MCCH Frequently Asked Questions (FAQs)

  • The recommended torque value for the AG4MCCH connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw-locking type and 1.5-3.5 Nm (13.3-29.5 in-lbs) for the bayonet-locking type.
  • Yes, the AG4MCCH connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, the AG4MCCH connector is designed to operate in harsh environments, including temperatures ranging from -55°C to 150°C and humidity up to 95% RH. However, it's essential to consult the datasheet and Amphenol's application notes for specific guidance.
  • The AG4MCCH connector is rated for a minimum of 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
  • The AG4MCCH connector is designed to be compatible with other connectors that meet the MIL-DTL-38999 standard. However, it's essential to verify compatibility with specific connectors from other manufacturers before use.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AG4MCCH Overview

Use the download button to access the AG4MCCH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AG4MC, or try a keyword search, such as Audio/RCA Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
