AGM2222-192ME - COILCRAFT

AGM2222-192ME Frequently Asked Questions (FAQs)

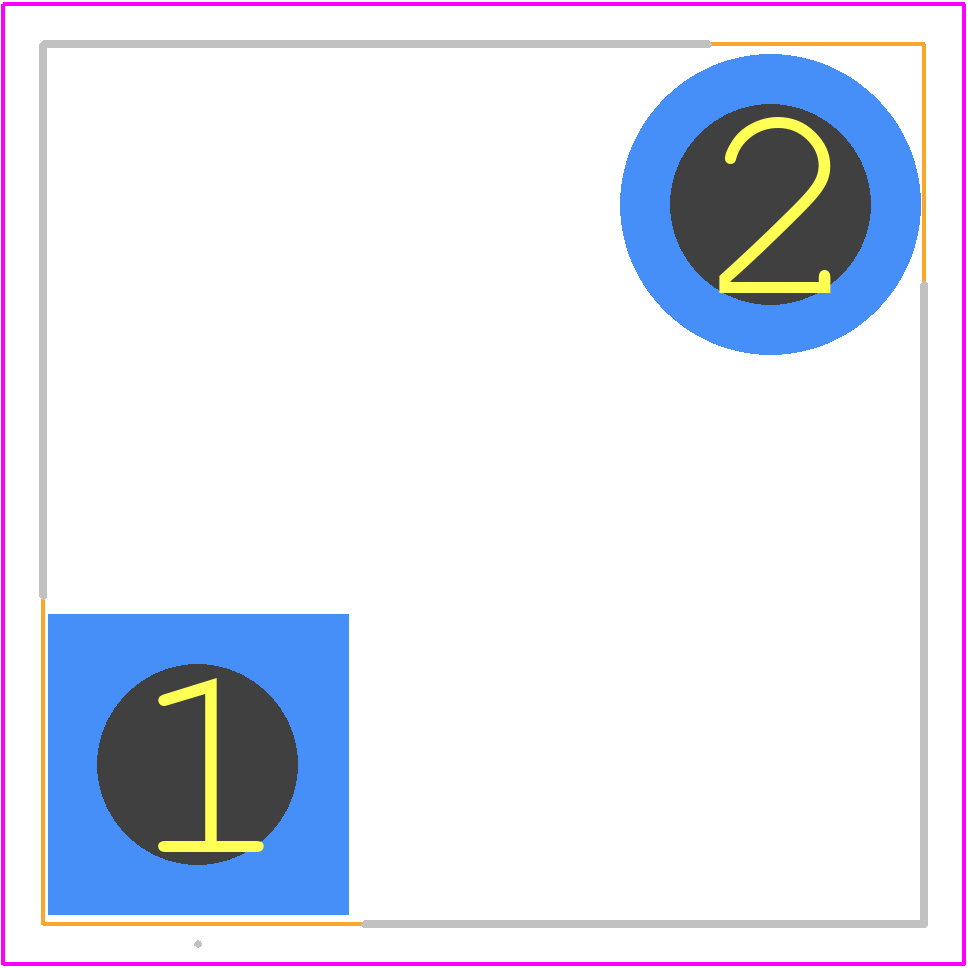

• What is the recommended land pattern for the AGM2222-192ME?
  The recommended land pattern for the AGM2222-192ME is available in the Coilcraft Land Pattern Library, which provides detailed information on pad layout, spacing, and dimensions for optimal performance and reliability.
• Can I use the AGM2222-192ME in a high-temperature environment?
  While the AGM2222-192ME is rated for operation up to 125°C, it's essential to consider the derating curves and temperature coefficients provided in the datasheet to ensure the inductor's performance and reliability in high-temperature applications.
• How do I handle the AGM2222-192ME's sensitivity to mechanical stress?
  To minimize the impact of mechanical stress, follow proper handling and mounting procedures, such as using a pick-and-place machine or a vacuum pickup tool, and avoid bending or flexing the leads during assembly.
• What is the AGM2222-192ME's compatibility with different soldering processes?
  The AGM2222-192ME is compatible with various soldering processes, including wave soldering, reflow soldering, and hand soldering. However, it's crucial to follow the recommended soldering profiles and temperatures to ensure reliable connections.
• Can I use the AGM2222-192ME in a high-vibration or high-shock environment?
  While the AGM2222-192ME is designed to withstand normal handling and operation, it's essential to consider the inductor's mechanical robustness and potential vibration or shock exposure in your specific application. Consult with Coilcraft or a qualified engineer for guidance on mitigating potential risks.
