AGM2222-882ME - COILCRAFT

AGM2222-882ME Frequently Asked Questions (FAQs)

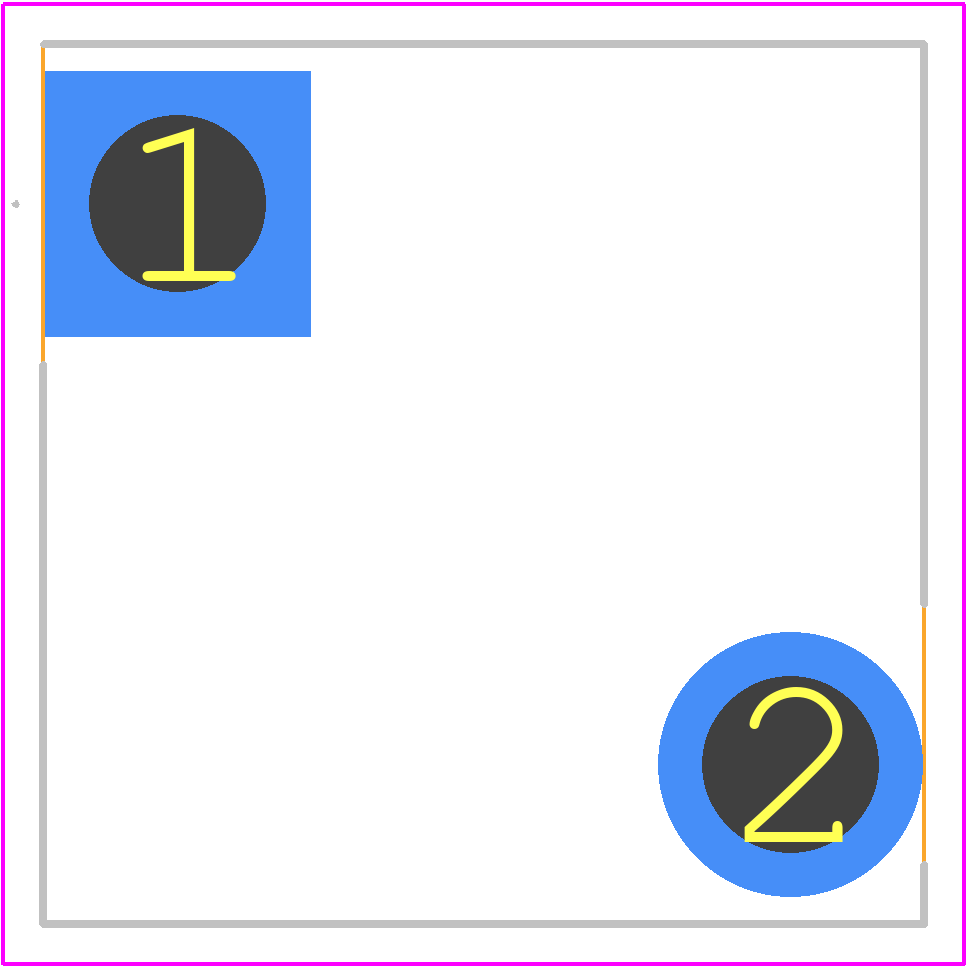

• What is the recommended land pattern for the AGM2222-882ME?
  The recommended land pattern for the AGM2222-882ME can be found in Coilcraft's Land Pattern Recommendations document, which provides detailed information on pad size, spacing, and geometry for optimal performance and reliability.
• How does the AGM2222-882ME perform in high-temperature environments?
  While the datasheet specifies an operating temperature range of -40°C to +125°C, Coilcraft recommends derating the inductor's current rating for extended operation above 105°C. Consult Coilcraft's Temperature Derating Guidelines for more information.
• Is the AGM2222-882ME compatible with high-frequency switching applications?
  Yes, the AGM2222-882ME is designed for high-frequency switching applications, with a self-resonant frequency (SRF) of 100 MHz. However, it's essential to consider the inductor's impedance characteristics and potential resonance issues in your specific application.
• What is the AGM2222-882ME's tolerance for DC bias?
  The AGM2222-882ME has a DC bias tolerance of up to 1.2 A, but this can affect the inductor's inductance and saturation characteristics. Consult Coilcraft's DC Bias Characteristics document for more information on how DC bias impacts performance.
• Are there any special handling or storage requirements for the AGM2222-882ME?
  Yes, Coilcraft recommends following standard ESD precautions when handling the AGM2222-882ME, and storing the components in a dry, cool environment to prevent moisture absorption and damage.
