A good PCB layout for the AGN200A03X involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow proper derating guidelines, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a reliable soldering process can help ensure reliability.
The AGN200A03X has an internal ESD protection circuit, but it's still important to follow proper ESD handling procedures during assembly and testing. A minimum of 1 kΩ resistance in series with the input and output pins is recommended to prevent ESD damage.
Yes, the AGN200A03X can be used in switching regulator applications. However, it's essential to ensure that the device is operated within its recommended frequency range and that the output is properly filtered to prevent high-frequency noise.
The AGN200A03X should be stored in a dry, cool place away from direct sunlight. It's essential to handle the device by the body, avoiding touching the pins, and to use an anti-static wrist strap or mat during assembly and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGN200A03X Overview

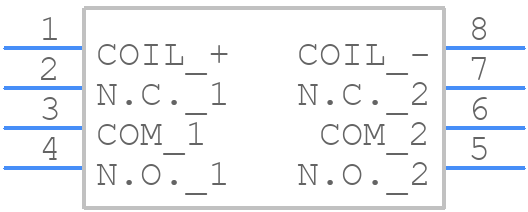

Use the download button to access the AGN200A03X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGN20,
or try a keyword search, such as Power/Signal Relays
