Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To ensure proper driving and control of the relay, it's crucial to follow the recommended drive circuit and voltage levels specified in the datasheet. Additionally, consider using a relay driver IC or a dedicated relay control circuit to simplify the design and ensure reliable operation.
When using the AGN200A12 in a high-vibration or high-shock environment, it's essential to ensure the relay is properly secured to the PCB and that the PCB is designed to withstand the mechanical stresses. Additionally, consider using a relay with a higher vibration and shock rating, such as the AGN200A12-H, which is specifically designed for harsh environments.
To handle the inrush current and voltage surge during switching, consider using a soft-start circuit or an inrush current limiter to reduce the stress on the relay and the power supply. Additionally, ensure the power supply is capable of handling the inrush current and voltage surge.
The AGN200A12 has a maximum operating temperature of 85°C. To ensure proper heat dissipation, ensure good airflow around the relay, use a heat sink if necessary, and follow the recommended PCB layout and thermal design guidelines provided by Panasonic.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGN200A12 Overview

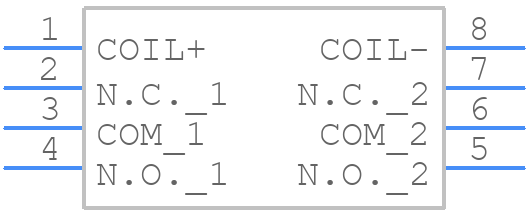

Use the download button to access the AGN200A12 schematic symbol, PCB footprint, and 3D model.
