AGN21009 - Panasonic

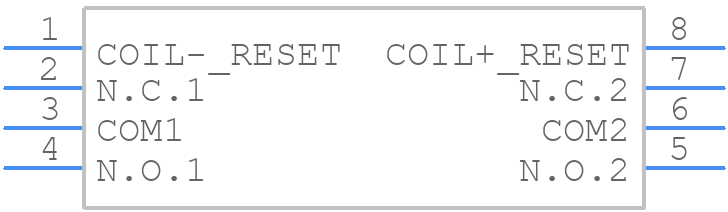

AGN21009 Details

• Manufacturer Part Number:

  AGN21009

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Additional Feature:

  RELEASE TIME WITH DIODE

• Body Breadth:

  5.7 mm

• Body Height:

  9 mm

• Body Length or Diameter:

  10.6 mm

• Coil Current(DC)-Max:

  0.011 A

• Coil Operate Voltage(DC):

  6.75 V

• Coil Power:

  100 mW

• Coil Release Voltage(DC):

  6.75 V

• Coil Resistance:

  810 Ω

• Coil Voltage(DC)-Max:

  9 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  1A@125VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@110VDC

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  110 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operate Time:

  4 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TUBE

• Physical Dimension:

  10.6mm x 5.7mm x 9mm

• Reference Standard:

  BSI; CSA; UL

• Relay Action:

  LATCHED

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  4 ms

• Sealing:

  WATER PROOF

• Surface Mount:

  NO

• Terminal Finish:

  Silver/Palladium (Ag/Pd)

• Termination Type:

  SOLDER
