AGN21012 - Panasonic

Description: Low Signal Relays - PCB 1A 12VDC DPDT LATCHING PCB

Download AGN21012 Model

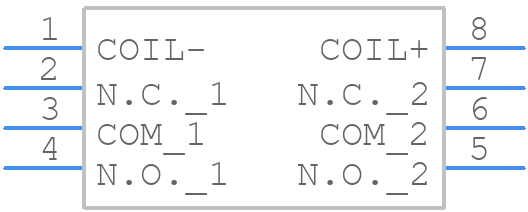

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AGN21012 - Panasonic PCB footprint - Other - Other - AGN21012-3
click to zoom
3D Models
AGN21012 - Panasonic  - 3D model - Other - AGN21012-3
click to zoom

AGN21012 Details

  • Manufacturer Part Number:

    AGN21012

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.87

  • Additional Feature:

    RELEASE TIME WITH DIODE

  • Body Breadth:

    5.7 mm

  • Body Height:

    9 mm

  • Body Length or Diameter:

    10.6 mm

  • Coil Current(DC)-Max:

    0.008 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    100 mW

  • Coil Release Voltage(DC):

    9 V

  • Coil Resistance:

    1440 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    1A@125VAC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@110VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    110 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    10.6mm x 5.7mm x 9mm

  • Reference Standard:

    BSI; CSA; UL

  • Relay Action:

    LATCHED

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Sealing:

    WATER PROOF

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

AGN21012 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and symmetrical, and use a common mode choke to reduce EMI.
  • Monitor the device's junction temperature, input voltage, and output current to ensure they are within the specified limits. Use thermal management techniques, such as heat sinks or thermal pads, to keep the junction temperature below 150°C.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input capacitor. This value provides a good balance between noise filtering and stability.
  • Use a shielded enclosure, keep the PCB layout compact, and use EMI filters or common mode chokes on the input and output lines. Also, ensure the device is properly grounded and use a low-ESR output capacitor.
  • The maximum allowed voltage drop is 1.5V. Exceeding this value may cause the device to malfunction or reduce its lifespan.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AGN21012 Overview

Use the download button to access the AGN21012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGN21, or try a keyword search, such as Power/Signal Relays
