A good PCB layout for the AGN210A06 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure to use a stable voltage source for Vcc and Vee. Additionally, ensure that the input signal is within the recommended range, and that the output is properly terminated to prevent reflections and oscillations.
The maximum power dissipation of the AGN210A06 is 1.2W. To prevent overheating, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and keep the ambient temperature within the recommended range. Also, make sure to follow the recommended operating conditions and avoid exceeding the maximum ratings.
While the AGN210A06 is primarily designed for linear amplifier applications, it can be used in switching power supply applications with caution. However, it's essential to ensure that the device is properly biased and that the input and output signals are within the recommended ranges. Additionally, consider the device's power dissipation and thermal management when designing the switching power supply circuit.
To troubleshoot common issues with the AGN210A06, start by verifying the PCB layout and ensuring that the device is properly biased. Check for any signs of overheating, and ensure that the input and output signals are within the recommended ranges. Use an oscilloscope to analyze the input and output waveforms, and look for any signs of oscillations or instability. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGN210A06 Overview

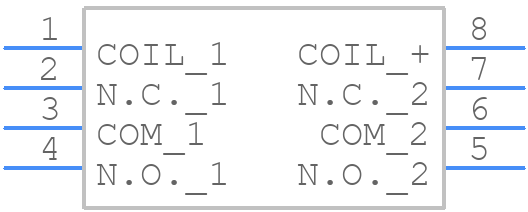

Use the download button to access the AGN210A06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGN21,
or try a keyword search, such as Power/Signal Relays
