AGN210S24X - Panasonic

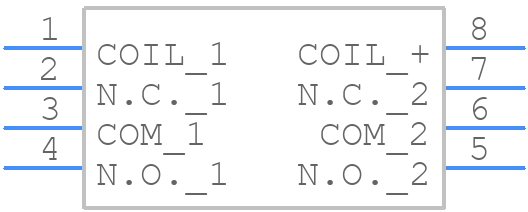

AGN210S24X Details

• Manufacturer Part Number:

  AGN210S24X

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Body Breadth:

  5.7 mm

• Body Height:

  9 mm

• Body Length or Diameter:

  10.6 mm

• Coil Current(DC)-Max:

  0.005 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  120 mW

• Coil Release Voltage(DC):

  18 V

• Coil Resistance:

  4800 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  37.5VA@125VAC

• Contact (AC) Max Rating R Load:

  1A@125VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Power Rating R Load:

  30W@110VDC

• Contact (DC) Max Rating R Load:

  1A@110VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  125 V

• Contact Voltage(DC)-Max:

  110 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Palladium

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e4

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  4 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX; TAPE AND REEL

• Physical Dimension:

  10.6mm x 5.7mm x 9mm

• Reference Standard:

  BSI; CSA; UL

• Relay Action:

  LATCHED

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  4 ms

• Surface Mount:

  NO

• Terminal Finish:

  Silver/Palladium (Ag/Pd)

• Termination Type:

  SOLDER
