AGN210S4H - Panasonic

Description: Low Signal Relays - PCB 2 Form C 1 Form A 30VDC SMD 4.5V

Download AGN210S4H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

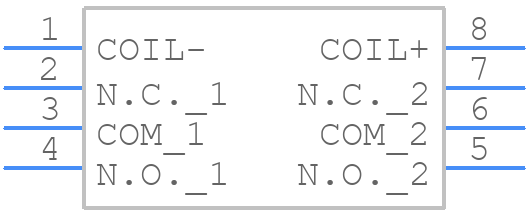

AGN210S4H - Panasonic - PCB symbol
click to zoom
PCB Footprints
AGN210S4H - Panasonic PCB footprint - Other - Other - AGN210S03-2
click to zoom
3D Models
AGN210S4H - Panasonic - 3D model - Other - AGN210S03-2
click to zoom

AGN210S4H Details

  • Manufacturer Part Number:

    AGN210S4H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    RELEASE TIME WITH DIODE

  • Body Breadth:

    5.7 mm

  • Body Height:

    9 mm

  • Body Length or Diameter:

    10.6 mm

  • Coil Current(DC)-Max:

    0.022 A

  • Coil Operate Voltage(DC):

    3.38 V

  • Coil Power:

    100 mW

  • Coil Release Voltage(DC):

    3.38 V

  • Coil Resistance:

    202.5 Ω

  • Coil Voltage(DC)-Max:

    4.5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    1A@125VAC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact (DC) Max Rating R Load:

    1A@110VDC

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    110 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    4 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TAPE AND REEL

  • Physical Dimension:

    10.6mm x 5.7mm x 9mm

  • Reference Standard:

    BSI; CSA; UL

  • Relay Action:

    LATCHED

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    4 ms

  • Sealing:

    WATER PROOF

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

AGN210S4H Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
  • The AGN210S4H has a high power dissipation, so proper thermal management is crucial. Use a heat sink, thermal interface material, and ensure good airflow around the device. The datasheet provides thermal resistance values to help with thermal design.
  • The AGN210S4H has an operating temperature range of -40°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. Consult the datasheet for more information on temperature-related specifications.
  • The AGN210S4H is designed to withstand moderate vibrations, but extreme vibrations may affect its performance and reliability. Panasonic provides vibration testing data in their reliability reports. Consult these reports and perform your own vibration testing to ensure the device meets your application's requirements.
