AGP2219F - Panasonic

Description: 1 Form A 8 A (AC) / 5 A (DC) , 1 Form A 1 Form B/2 Form A 5 A (AC/DC) , Small polarized power relays

Download AGP2219F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AGP2219F model

Email notifications will be applied after download.

Send part feedback

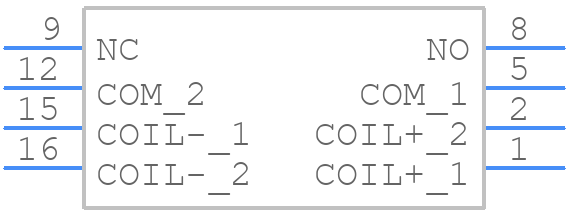

Symbol

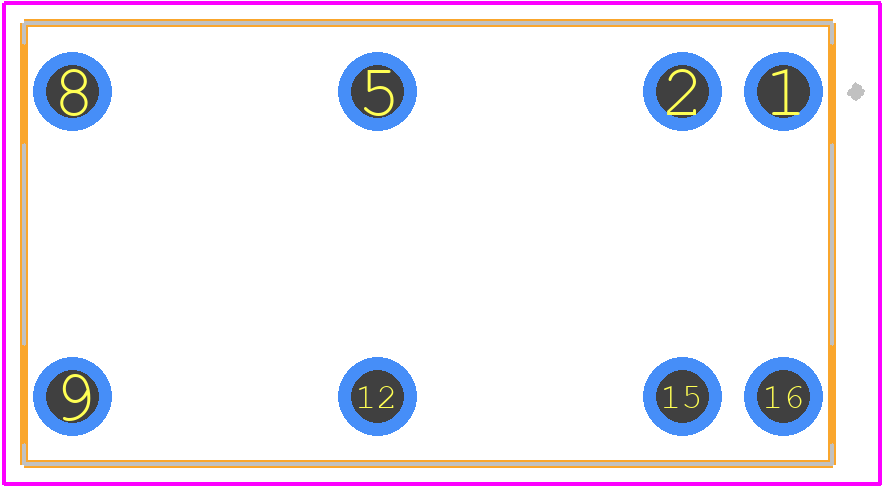

AGP2219F - Panasonic - PCB symbol

PCB Footprints

AGP2219F - Panasonic PCB footprint - Other - Other - DSP1-L2-DC5V-F-1

3D Models

AGP2219F - Panasonic - 3D model - Other - DSP1-L2-DC5V-F-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AGP2219F
Part Number AGP2219F
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DSP1-L2-DC5V-F-1
Released Date Oct 16, 2025
Last Modified Date Jan 21, 2026 3:14 PM UTC
Pinout / Pin List Click Here (Member Only)

AGP2219F Details

Manufacturer Part Number:
AGP2219F
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AGP2219F Overview

Use the download button to access the AGP2219F schematic symbol, PCB footprint, and 3D model.
