AGP4233-104ME - COILCRAFT

AGP4233-104ME Frequently Asked Questions (FAQs)

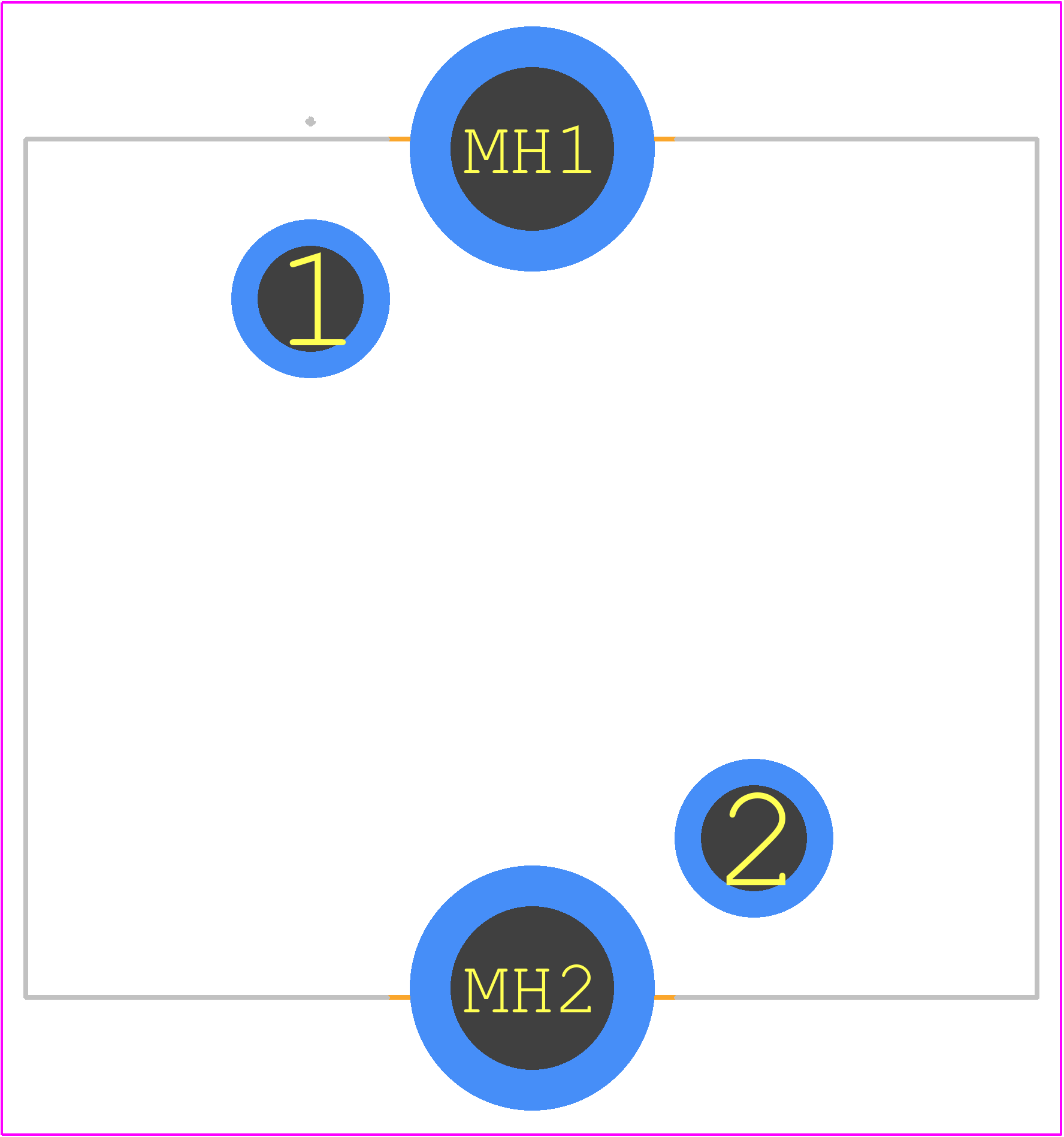

• What is the recommended land pattern for the AGP4233-104ME?
  Coilcraft provides a recommended land pattern for the AGP4233-104ME in their datasheet, but it's also available as a separate document on their website. The land pattern is designed to ensure optimal performance and reliability of the inductor.
• Can I use the AGP4233-104ME in a high-temperature environment?
  The AGP4233-104ME is rated for operation up to 125°C, but derating may be necessary for temperatures above 85°C. It's essential to consult the datasheet and Coilcraft's application notes for guidance on high-temperature operation.
• How do I handle the AGP4233-104ME during PCB assembly to prevent damage?
  To prevent damage during PCB assembly, handle the AGP4233-104ME by the body, avoiding touching the leads or core. Use a vacuum pickup or tweezers to place the component, and avoid bending or flexing the leads.
• What is the equivalent series resistance (ESR) of the AGP4233-104ME?
  The ESR of the AGP4233-104ME is not explicitly stated in the datasheet, but it can be calculated using the impedance vs. frequency graph provided. Alternatively, contact Coilcraft's technical support for ESR values or guidance on how to calculate it.
• Can I use the AGP4233-104ME in a high-vibration or shock environment?
  The AGP4233-104ME is designed to meet the vibration and shock requirements of various industry standards, such as IEC 60068-2-6 and IEC 60068-2-27. However, it's essential to consult Coilcraft's application notes and perform thorough testing to ensure the inductor meets the specific requirements of your application.
