AGP4233-153ME - COILCRAFT

AGP4233-153ME Frequently Asked Questions (FAQs)

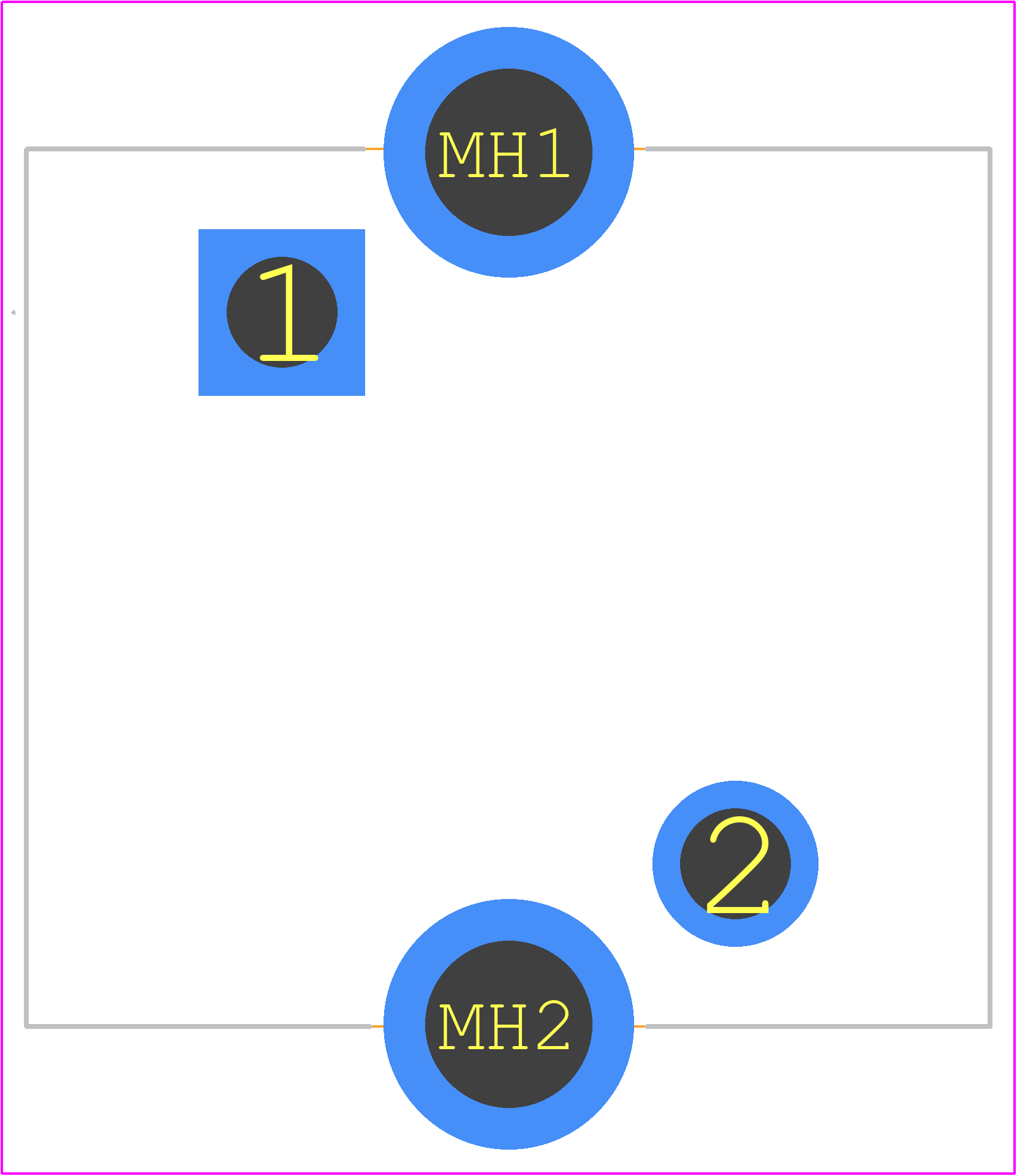

• What is the recommended land pattern for the AGP4233-153ME?
  The recommended land pattern for the AGP4233-153ME can be found in the Coilcraft Land Pattern Recommendation document, which provides a detailed layout and footprint for optimal performance and reliability.
• How do I handle the AGP4233-153ME's sensitivity to temperature?
  The AGP4233-153ME's inductance and resistance values can vary with temperature. To minimize the impact of temperature, ensure proper thermal management, use a thermally conductive PCB material, and consider using a temperature-compensated inductor or a thermistor in the circuit design.
• What is the maximum current rating for the AGP4233-153ME?
  The maximum current rating for the AGP4233-153ME is 15.3A, but this value can be affected by the operating frequency, temperature, and other factors. Always check the inductor's saturation current and temperature rise to ensure reliable operation.
• Can I use the AGP4233-153ME in a high-frequency application?
  Yes, the AGP4233-153ME is suitable for high-frequency applications up to 1 MHz. However, be aware of the inductor's self-resonant frequency (SRF) and ensure that the operating frequency is below the SRF to avoid unwanted resonances.
• How do I ensure the AGP4233-153ME meets my specific application's requirements?
  Consult with Coilcraft's application engineers or use their online tools, such as the Inductor Selection Tool, to ensure the AGP4233-153ME meets your specific application's requirements, including inductance, current rating, and operating frequency.
