AGP4233-154ME Frequently Asked Questions (FAQs)

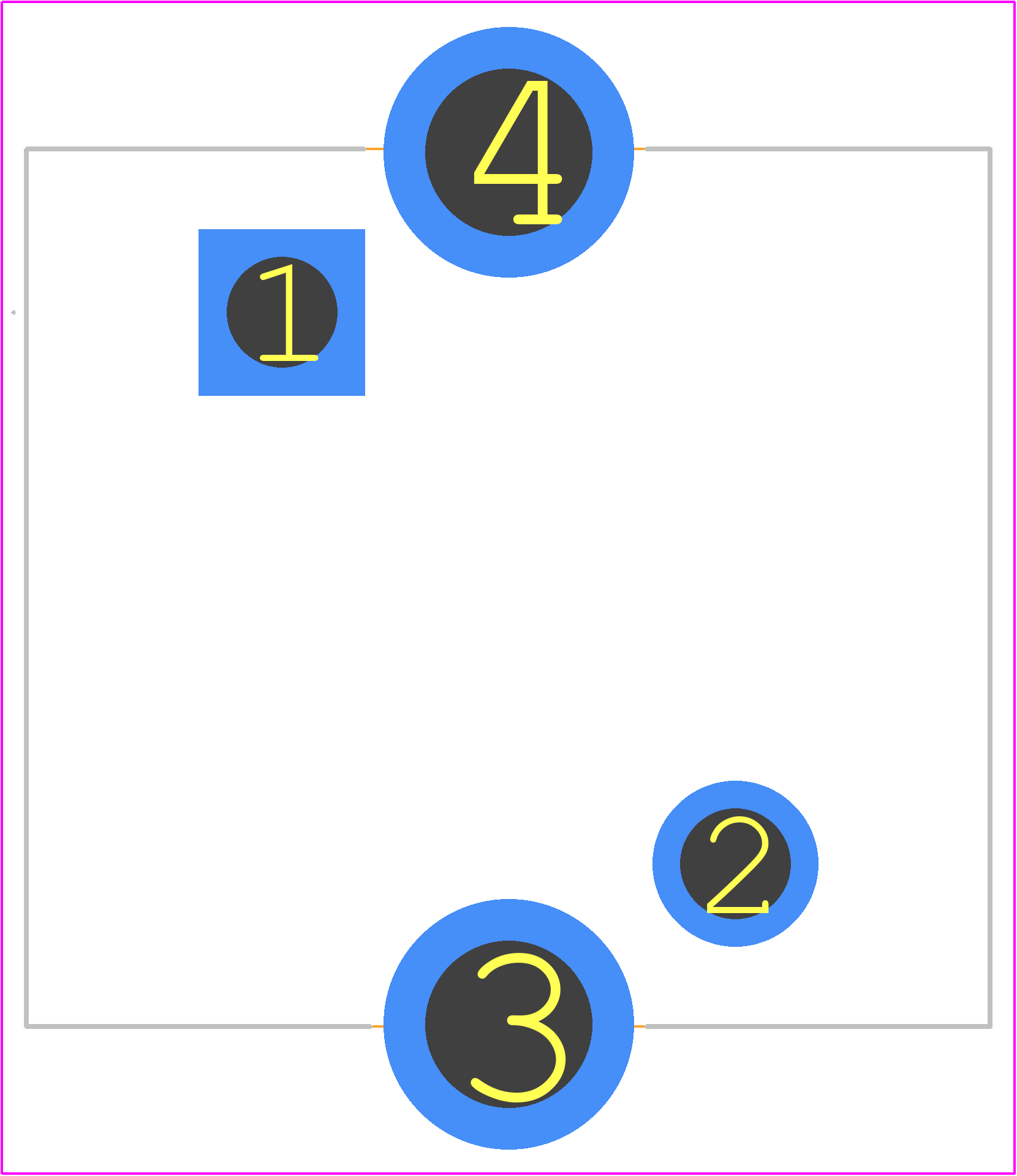

• What is the recommended land pattern for the AGP4233-154ME?
  Coilcraft provides a recommended land pattern for the AGP4233-154ME in their datasheet, but it's also available as a separate document on their website. The land pattern is designed to ensure optimal performance and reliability of the inductor.
• Can I use the AGP4233-154ME in a high-temperature environment?
  The AGP4233-154ME is rated for operation up to 125°C, but it's essential to consider the derating curves provided in the datasheet to ensure the inductor can handle the specific temperature range of your application.
• How do I handle the AGP4233-154ME's sensitivity to mechanical stress?
  The AGP4233-154ME, like many inductors, can be sensitive to mechanical stress, which can affect its performance and reliability. It's crucial to follow proper handling and mounting procedures, such as avoiding bending or flexing the leads, and using a secure and even soldering process.
• What is the equivalent series resistance (ESR) of the AGP4233-154ME?
  The ESR of the AGP4233-154ME is not explicitly stated in the datasheet, but it can be estimated based on the inductor's DC resistance and the frequency of operation. Coilcraft provides an ESR calculator tool on their website to help estimate the ESR for their inductors.
• Can I use the AGP4233-154ME in a high-frequency application?
  The AGP4233-154ME is designed for high-frequency applications, but its performance may degrade at very high frequencies. It's essential to review the inductor's impedance vs. frequency curve in the datasheet to ensure it meets the requirements of your specific application.
