AGP4233-223ME - COILCRAFT

AGP4233-223ME Frequently Asked Questions (FAQs)

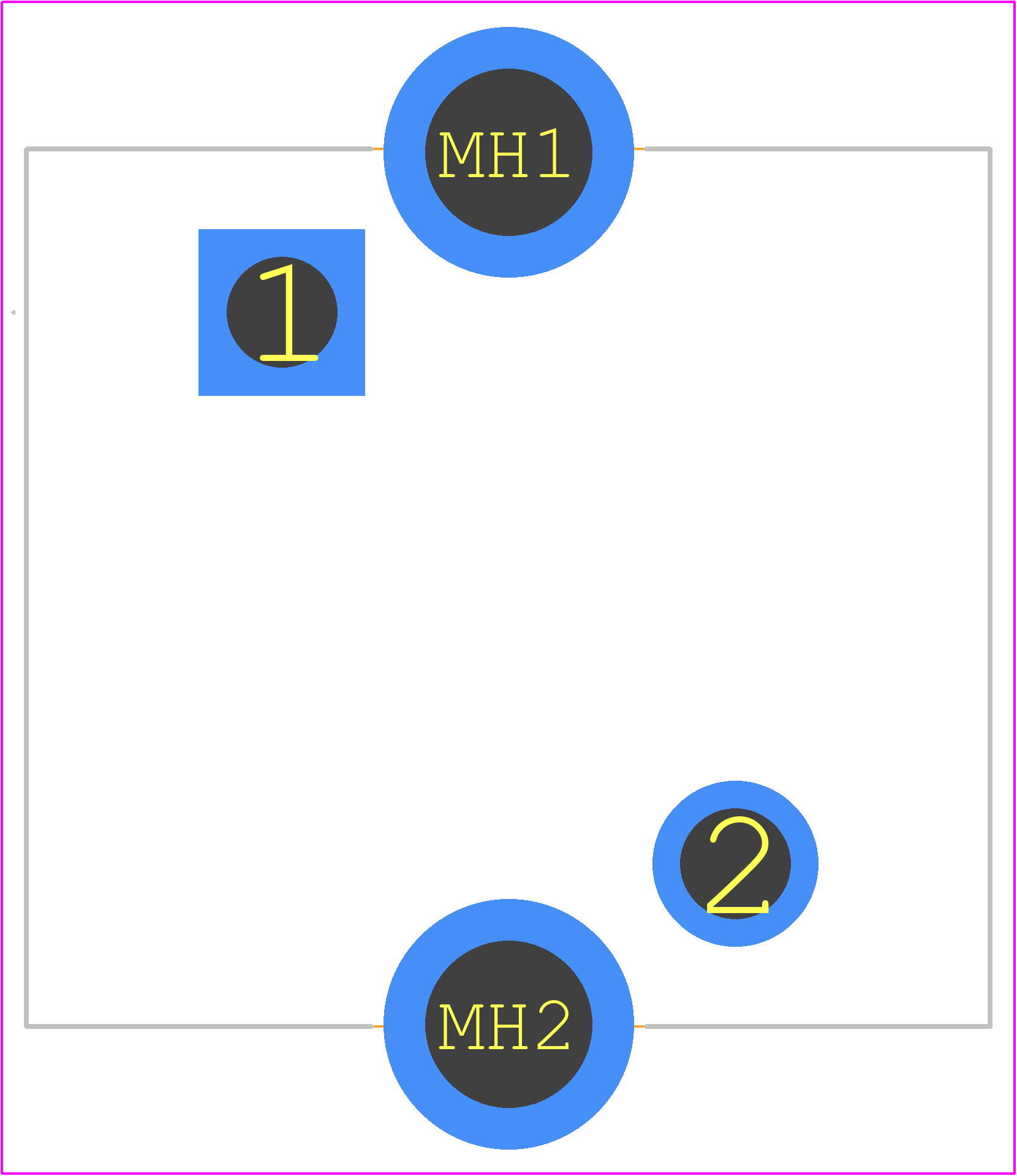

• What is the recommended land pattern for the AGP4233-223ME?
  The recommended land pattern for the AGP4233-223ME can be found in the Coilcraft Land Pattern Recommendation document, which provides a detailed layout and footprint for optimal performance and reliability.
• How do I handle the AGP4233-223ME's sensitivity to temperature?
  The AGP4233-223ME's inductance and resistance values can vary with temperature. To minimize the impact of temperature, ensure proper thermal management, use a thermally conductive PCB material, and consider using a temperature-compensated inductor or a thermistor in the circuit design.
• What is the maximum current rating for the AGP4233-223ME?
  The maximum current rating for the AGP4233-223ME is 22.3A, but this value can be affected by the operating frequency, temperature, and other factors. Always check the inductor's current rating at the specific operating conditions of your design.
• Can I use the AGP4233-223ME in a high-frequency application?
  Yes, the AGP4233-223ME is suitable for high-frequency applications up to 1 GHz. However, be aware that the inductor's performance may degrade at higher frequencies due to skin effect and proximity effect. Consult Coilcraft's high-frequency inductor selection guide for more information.
• How do I ensure the AGP4233-223ME meets my specific application's requirements?
  Consult with Coilcraft's application engineers or use their online tools, such as the Inductor Selection Guide or the Coilcraft Designer, to ensure the AGP4233-223ME meets your specific application's requirements, including inductance, current rating, and operating frequency.
