AGP4233-473ME - COILCRAFT

AGP4233-473ME Frequently Asked Questions (FAQs)

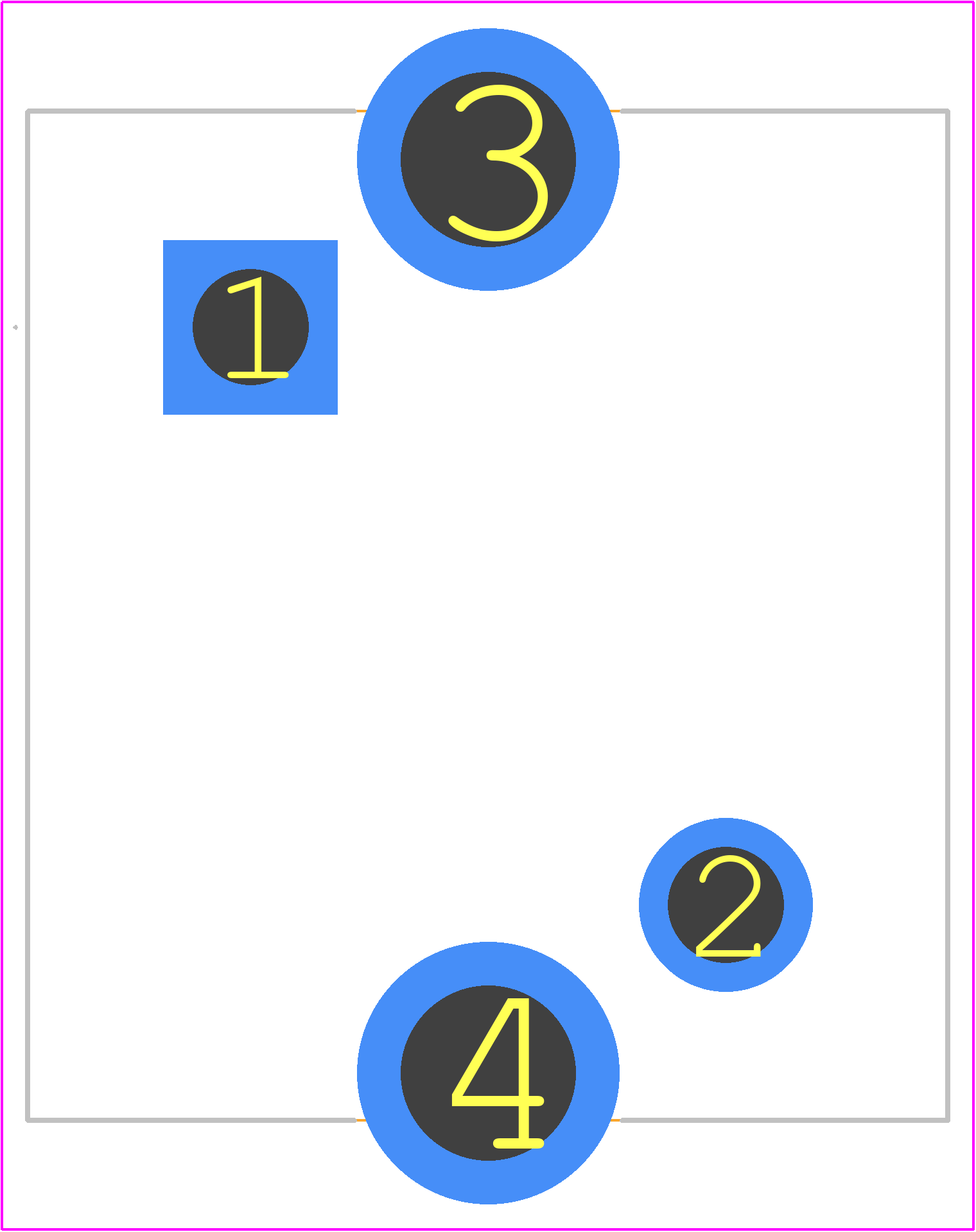

• What is the recommended land pattern for the AGP4233-473ME?
  The recommended land pattern for the AGP4233-473ME can be found in the Coilcraft Land Pattern Recommendation document, which provides a detailed layout and footprint for optimal performance and reliability.
• How do I handle the AGP4233-473ME's sensitivity to temperature?
  The AGP4233-473ME's inductance and Q values are sensitive to temperature. To minimize the impact of temperature, ensure proper thermal management, use a thermally conductive PCB material, and consider using a temperature-compensated inductor or a different inductor with a more stable temperature coefficient.
• What is the maximum current rating for the AGP4233-473ME?
  The maximum current rating for the AGP4233-473ME is 4.7A, but this value can be affected by the operating frequency, temperature, and other factors. Always check the inductor's current rating at the specific operating conditions of your design.
• Can I use the AGP4233-473ME in a high-frequency application?
  Yes, the AGP4233-473ME is suitable for high-frequency applications up to 1 GHz. However, be aware that the inductor's performance may degrade at higher frequencies, and you may need to consider other inductor options or use impedance matching techniques to optimize performance.
• How do I ensure the AGP4233-473ME meets my specific application's requirements?
  To ensure the AGP4233-473ME meets your application's requirements, carefully review the datasheet, consider factors like operating frequency, current, and temperature, and consult with Coilcraft's application engineers or a qualified design expert if necessary.
