AGP4233-474ME - COILCRAFT

Description: Inductor, AGP4233 Series, 470 µH, 17.5 A, 2.6 A, 0.0115 ohm, ± 20%

Download AGP4233-474ME Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AGP4233-474ME - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

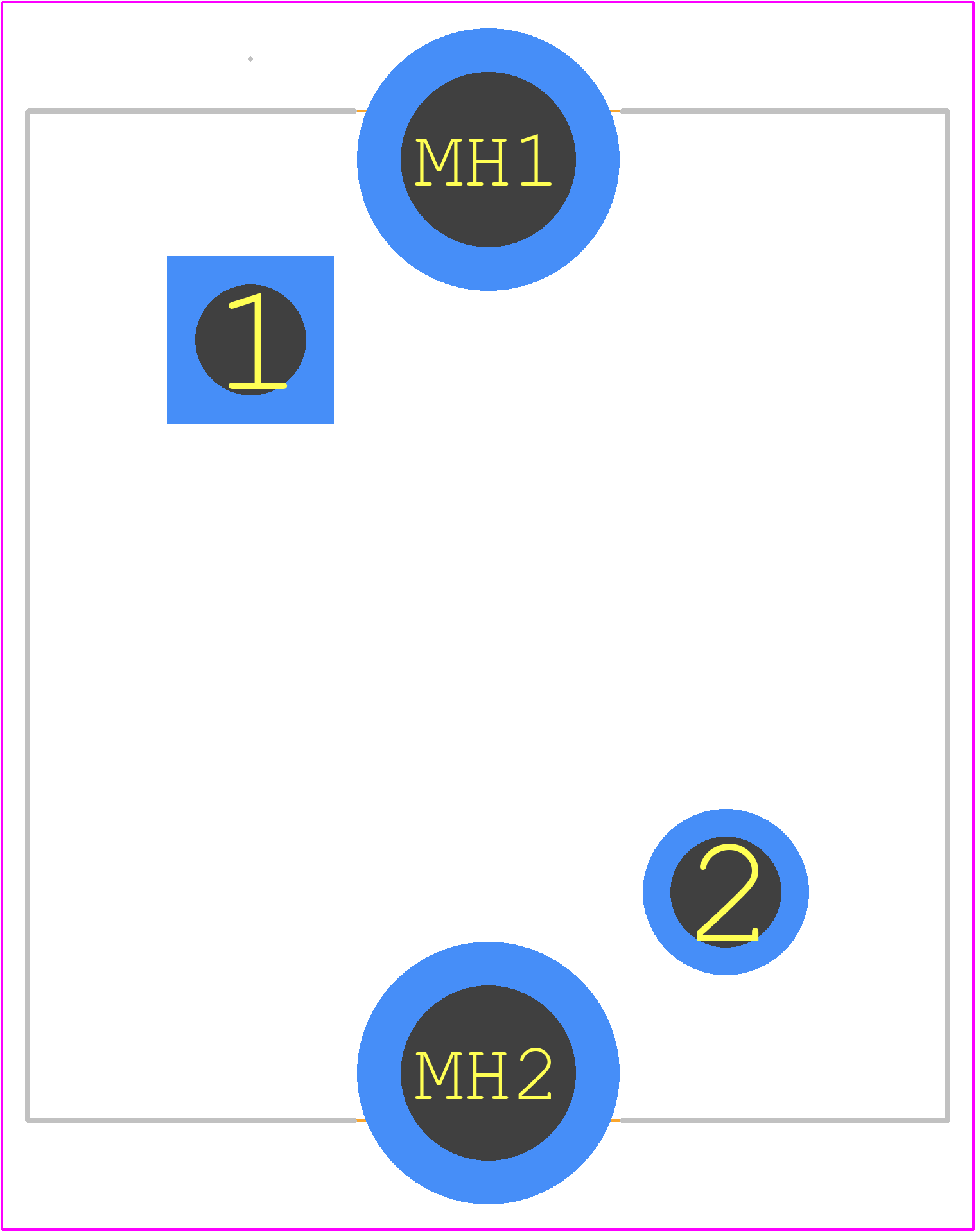

AGP4233-474ME - COILCRAFT PCB footprint - Other - Other - AGP4233-474ME-5
click to zoom
3D Models
AGP4233-474ME - COILCRAFT - 3D model - Other - AGP4233-474ME-5
click to zoom

AGP4233-474ME Details

  • Manufacturer Part Number:

    AGP4233-474ME

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.2

  • Construction:

    RECTANGULAR PACKAGE

  • Core Material:

    FERRITE

  • DC Resistance:

    0.01155 Ω

  • Inductance-Nom (L):

    470 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Lead Length:

    5.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    165 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    28 mm

  • Package Length:

    39.3 mm

  • Package Style:

    PCB Mount

  • Package Width:

    35.8 mm

  • Packing Method:

    Tray

  • Rated Current-Max:

    17.5 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    3.6 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    FLAT

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%
