Part Image

AGQ21TA1HX - Panasonic

Description: Low Signal Relays - PCB 1.5V 100mW SMT ATYPE 10.60x7.20x5.20mm

Download AGQ21TA1HX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

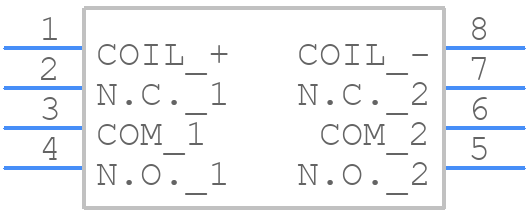

AGQ21TA1HX - Panasonic - PCB symbol
click to zoom
PCB Footprints

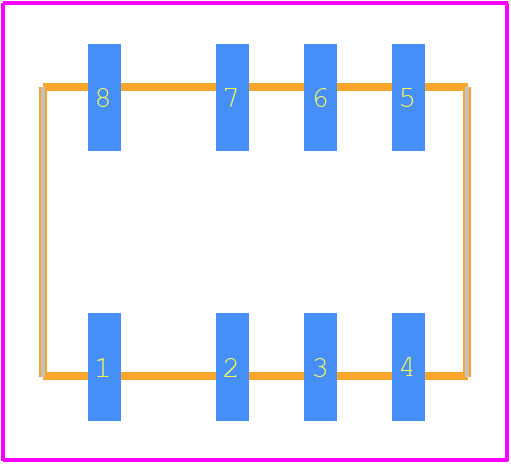

AGQ21TA1HX - Panasonic PCB footprint - Other - Other - AGQ210A03Z
click to zoom
3D Models
AGQ21TA1HX - Panasonic - 3D model - Other - AGQ210A03Z
click to zoom

AGQ21TA1HX Details

  • Manufacturer Part Number:

    AGQ21TA1HX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Relay Type:

    POWER/SIGNAL RELAY

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AGQ21TA1HX Overview

Use the download button to access the AGQ21TA1HX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGQ21, or try a keyword search, such as Power/Signal Relays
