Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To handle the high inrush current, it's recommended to use a suitable current limiting resistor or an inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting features.
The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV. Exceeding this value can lead to contact degradation and reduced relay lifespan. Ensure that the relay is operated within the specified voltage range and that the contact resistance is monitored regularly.
While the AGQ21TS24X has a high operating temperature range, it's essential to consider the derating factors and ensure that the relay is operated within the specified temperature range. Additionally, consider the effects of high temperatures on the relay's lifespan and performance.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing track lengths, and using shielding where necessary. Additionally, consider using a relay with built-in EMC features, such as a shielded coil or a relay with a low electromagnetic emission design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGQ21TS24X Overview

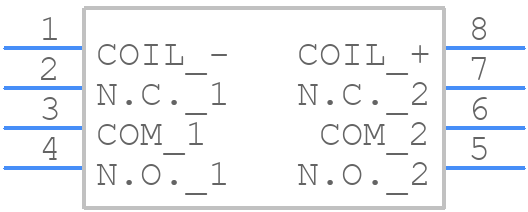

Use the download button to access the AGQ21TS24X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AGQ21,
or try a keyword search, such as Power/Signal Relays
