The recommended PCB layout and land pattern for the AGSC-2439PI can be found in the Allied Components International's application note AN-001, which provides detailed guidelines for optimal performance and thermal management.
To ensure reliable soldering and avoid damage, follow the recommended soldering profile and handling procedures outlined in the datasheet. Additionally, use a soldering iron with a temperature range of 250°C to 260°C, and avoid applying excessive force or pressure during the assembly process.
The AGSC-2439PI has a thermal resistance of 25°C/W. To ensure proper heat dissipation, use a heat sink with a thermal interface material, and follow the recommended PCB layout and thermal management guidelines in the application note AN-001.
Yes, the AGSC-2439PI is an ESD-sensitive device. Handle the component in an ESD-controlled environment, and follow proper ESD protection measures such as using an ESD wrist strap, mat, or workstation.
Store the AGSC-2439PI in its original packaging or a dry, ESD-protected environment. Avoid exposing the component to moisture, extreme temperatures, or physical stress. Follow the recommended storage and handling procedures outlined in the datasheet and industry standards such as IPC-A-610.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AGSC-2439PI Overview

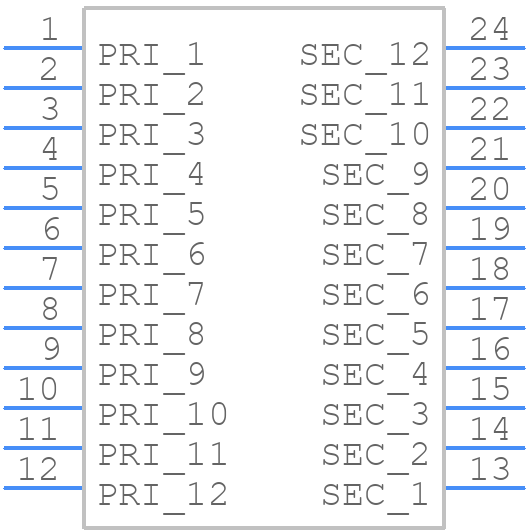

Use the download button to access the AGSC-2439PI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AGSC-,
or try a keyword search, such as Pulse/Datacom Transformers
