A recommended PCB layout for the AH1815-P-B includes a ground plane, short traces, and a decoupling capacitor (e.g., 10nF) between VCC and GND. This layout helps minimize noise, EMI, and voltage drops.
To ensure proper power-on and power-off, use a soft-start circuit or a voltage supervisor to control the power supply. This prevents voltage spikes, noise, and damage to the device.
The maximum allowed voltage on the output pins of the AH1815-P-B is VCC + 0.3V. Exceeding this voltage may damage the device or affect its performance.
The AH1815-P-B is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation, thermal resistance, and PCB design to ensure reliable operation in high-temperature environments.
To troubleshoot issues with the AH1815-P-B, check the power supply, PCB layout, and connections. Use a logic analyzer or oscilloscope to verify the input and output signals. Consult the datasheet and application notes for guidance on specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AH1815-P-B Overview

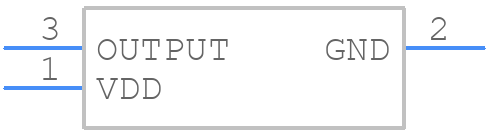

Use the download button to access the AH1815-P-B schematic symbol, PCB footprint, and 3D model.
