- Part Number AH323-G
- Manufacturer Qorvo
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 20QFN5*5
- Released Date Mar 19, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AH323-G Details
-
Manufacturer Part Number:
AH323-G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
5 X 5 MM, GREEN, MO-220VHHC, QFN-20
-
ECCN Code:
5A991.B
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
JESD-30 Code:
S-XQCC-N20
-
Length:
5 mm
-
Number of Functions:
1
-
Number of Terminals:
20
AH323-G Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and transitions between layers to minimize signal loss.
-
The AH323-G requires a 3.3V power supply. Ensure the voltage regulator is stable and can provide a minimum of 10mA current. Use a 10uF capacitor in parallel with a 100nF capacitor for power supply decoupling.
-
The AH323-G is rated for operation from -40°C to 85°C. However, optimal performance is achieved between 0°C and 60°C. Ensure proper thermal management to prevent overheating.
-
Use a spectrum analyzer to verify the output frequency and power. Check the input signal quality and ensure proper biasing. Verify the PCB layout and component placement. Consult the datasheet and application notes for troubleshooting guides.
-
Yes, the AH323-G can be used in a push-pull configuration. However, ensure the output stages are properly matched and biased to prevent uneven current draw and potential oscillations.
Trust Checks
Expert Contribution
System Verified
Community Approved
AH323-G Overview

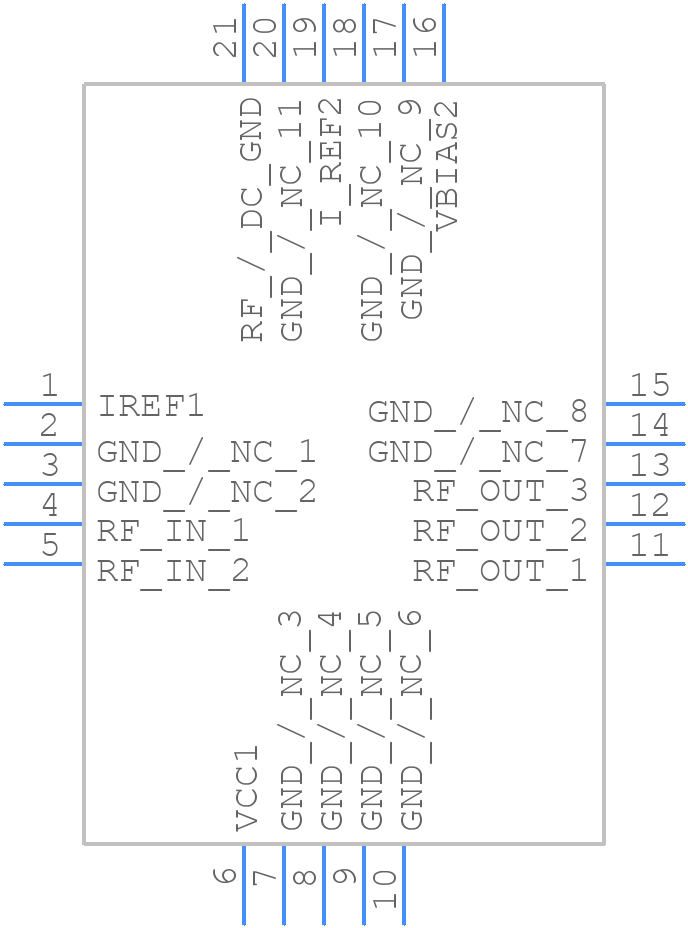

Use the download button to access the AH323-G schematic symbol, PCB footprint, and 3D model.
