AHEA4192 - Panasonic

AHEA4192 Details

• Manufacturer Part Number:

  AHEA4192

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  8

• Additional Feature:

  MIRROR CONTACT MECHANISM

• Body Breadth:

  33 mm

• Body Height:

  38.8 mm

• Body Length or Diameter:

  38 mm

• Coil Current(DC)-Max:

  0.08 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  1920 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  300 Ω

• Coil Voltage(DC)-Max:

  26.4 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  60A@490VAC

• Contact Current(AC)-Max:

  60 A

• Contact Current(DC)-Max:

  90 A

• Contact (DC) Max Rating R Load:

  90A@60VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  490 V

• Contact Voltage(DC)-Max:

  60 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  1000 Cycle(s)

• End Contact Material:

  Silver Nickel

• End Contact Plating:

  Gold Flash

• Insulation Resistance:

  1000000000 Ω

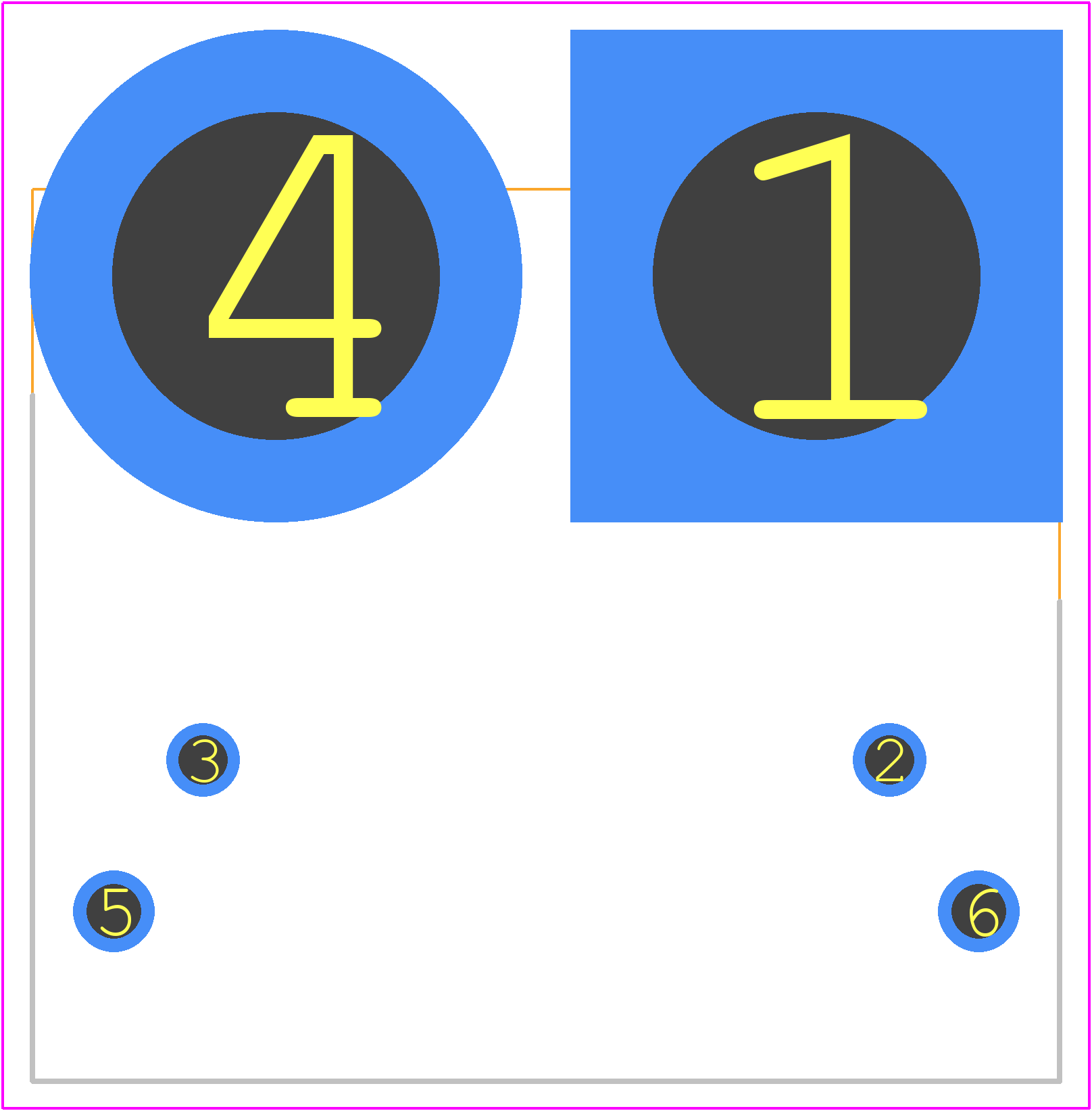

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  6

• Operate Time:

  30 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  38mm X 33mm X 38.8mm

• Reference Standard:

  IEC 60947-4-1; IEC 61810-1; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A,B

• Relay Function:

  DPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003200406400812802 inch

• Termination Type:

  SOLDER
