AHER2281 - Panasonic

AHER2281 Details

• Manufacturer Part Number:

  AHER2281

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Additional Feature:

  MIRROR CONTACT MECHANISM

• Body Breadth:

  37 mm

• Body Height:

  47 mm

• Body Length or Diameter:

  60 mm

• Coil Current(DC)-Max:

  0.333 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  4000 mW

• Coil Release Voltage(DC):

  0.6 V

• Coil Resistance:

  36 Ω

• Coil Voltage(DC)-Max:

  13.2 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  80A@277VAC

• Contact Current(AC)-Max:

  80 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@30VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  277 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  Silver Nickel

• End Contact Plating:

  Gold Flash

• Insulation Resistance:

  1000000000 Ω

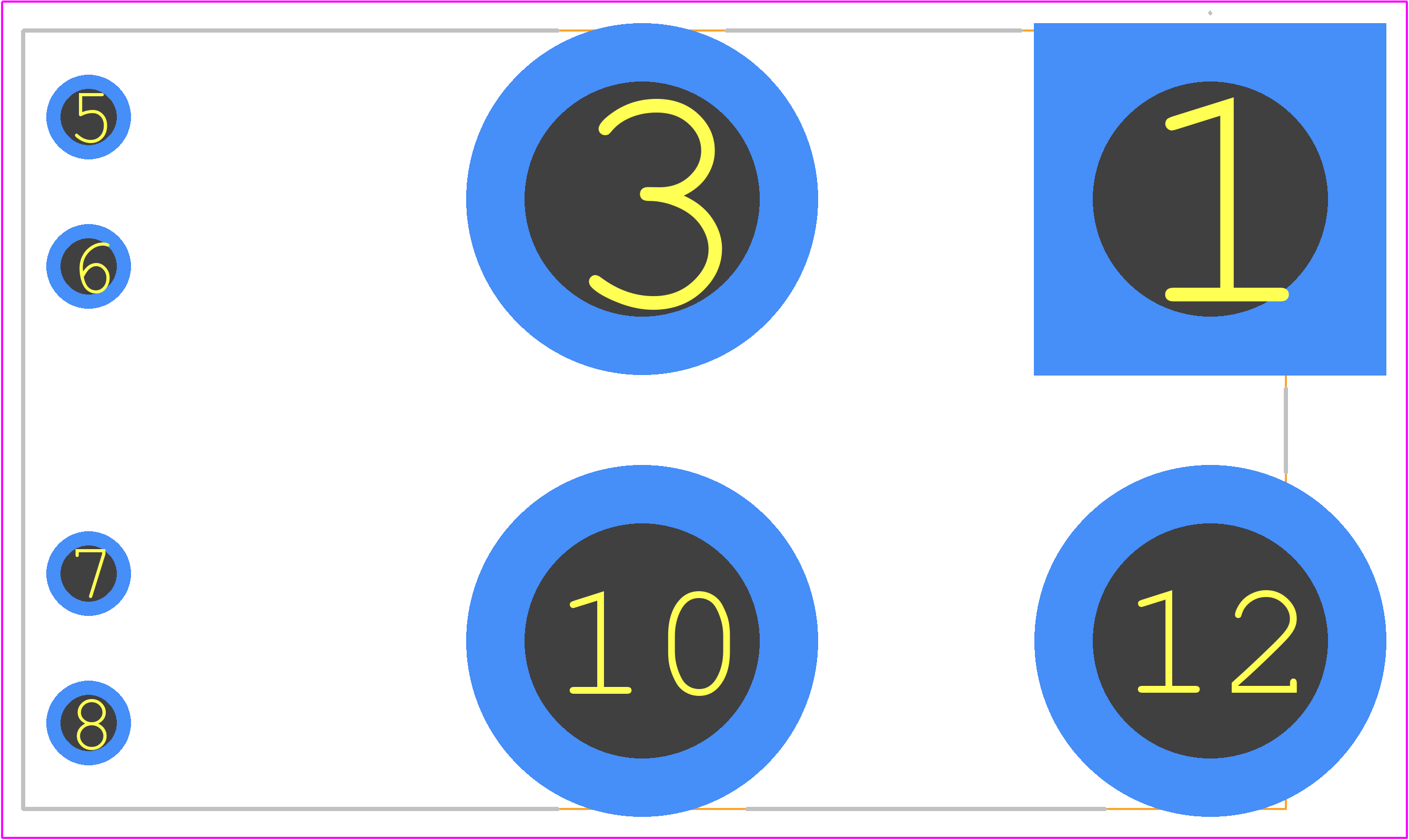

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  50 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  60mm X 37mm X 47mm

• Reference Standard:

  IEC 60947-4-1; IEC 61810-1; UL; VDE

• Relay Action:

  MOMENTARY

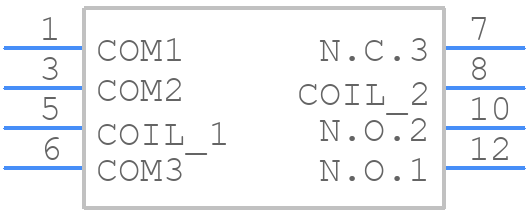

• Relay Form:

  2 FORM A, 1 FORM B

• Relay Function:

  3PST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  30 ms

• Surface Mount:

  NO

• Terminal Length:

  0.005511811023622047 inch

• Termination Type:

  SOLDER
