AHER3192 - Panasonic

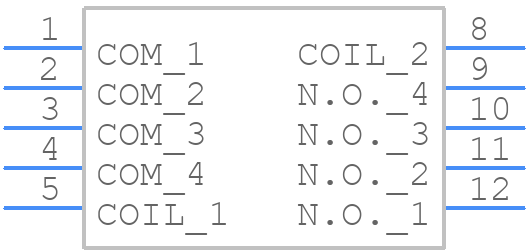

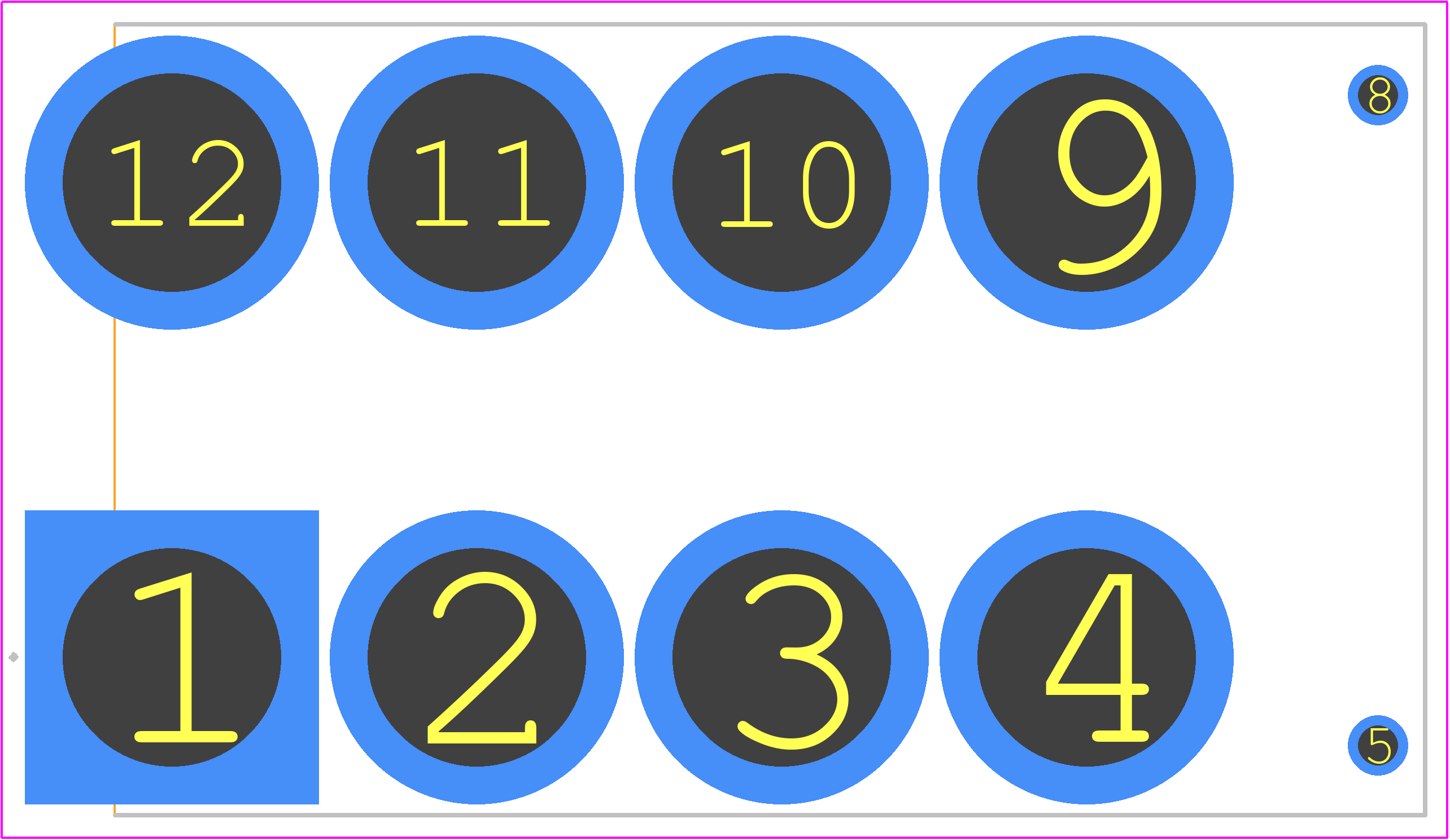

AHER3192 Details

• Manufacturer Part Number:

  AHER3192

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• Additional Feature:

  MIRROR CONTACT MECHANISM

• Body Breadth:

  35 mm

• Body Height:

  47 mm

• Body Length or Diameter:

  58 mm

• Coil Current(DC)-Max:

  0.167 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  4000 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  144 Ω

• Coil Voltage(DC)-Max:

  26.4 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  19200VA@480VAC

• Contact (AC) Max Rating R Load:

  50A@480VAC

• Contact Current(AC)-Max:

  50 A

• Contact Resistance:

  10 mΩ

• Contact Voltage(AC)-Max:

  480 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  10

• Operate Time:

  50 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  58mm X 35mm X 47mm

• Reference Standard:

  IEC 60947-4-1; IEC 61810-1; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  4 FORM A

• Relay Function:

  4PST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  30 ms

• Sealing:

  SEALED TYPE

• Surface Mount:

  NO

• Terminal Length:

  0.005511811023622047 inch

• Termination Type:

  SOLDER
