AHER4192 requires a careful PCB layout to minimize noise and ensure optimal performance. It is recommended to follow a 4-layer PCB stackup with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, a decoupling capacitor should be placed close to the VCC pin to reduce noise.
AHER4192 has an internal overvoltage protection (OVP) circuit that protects the device from voltage surges up to 28V. However, it is still recommended to add external overvoltage protection components, such as a TVS diode, to ensure robust protection against voltage transients.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it is recommended to derate the device's performance at extreme temperatures. For reliable operation, it is suggested to operate AHER4192 within a temperature range of -20°C to 100°C.
AHER4192 is designed for low-frequency applications up to 100 kHz. While it may be possible to use it in high-frequency applications, the device's performance may degrade, and additional filtering or compensation may be required to ensure stability.
AHER4192 has a soft-start feature that helps to reduce inrush current during power-on. However, it is still recommended to add an external soft-start circuit to ensure a smooth power-on sequence. During power-off, the device's output voltage will decay rapidly, but it is recommended to add an external discharge circuit to ensure a safe shutdown.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AHER4192 Overview

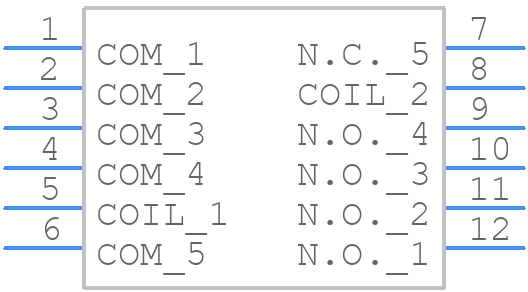

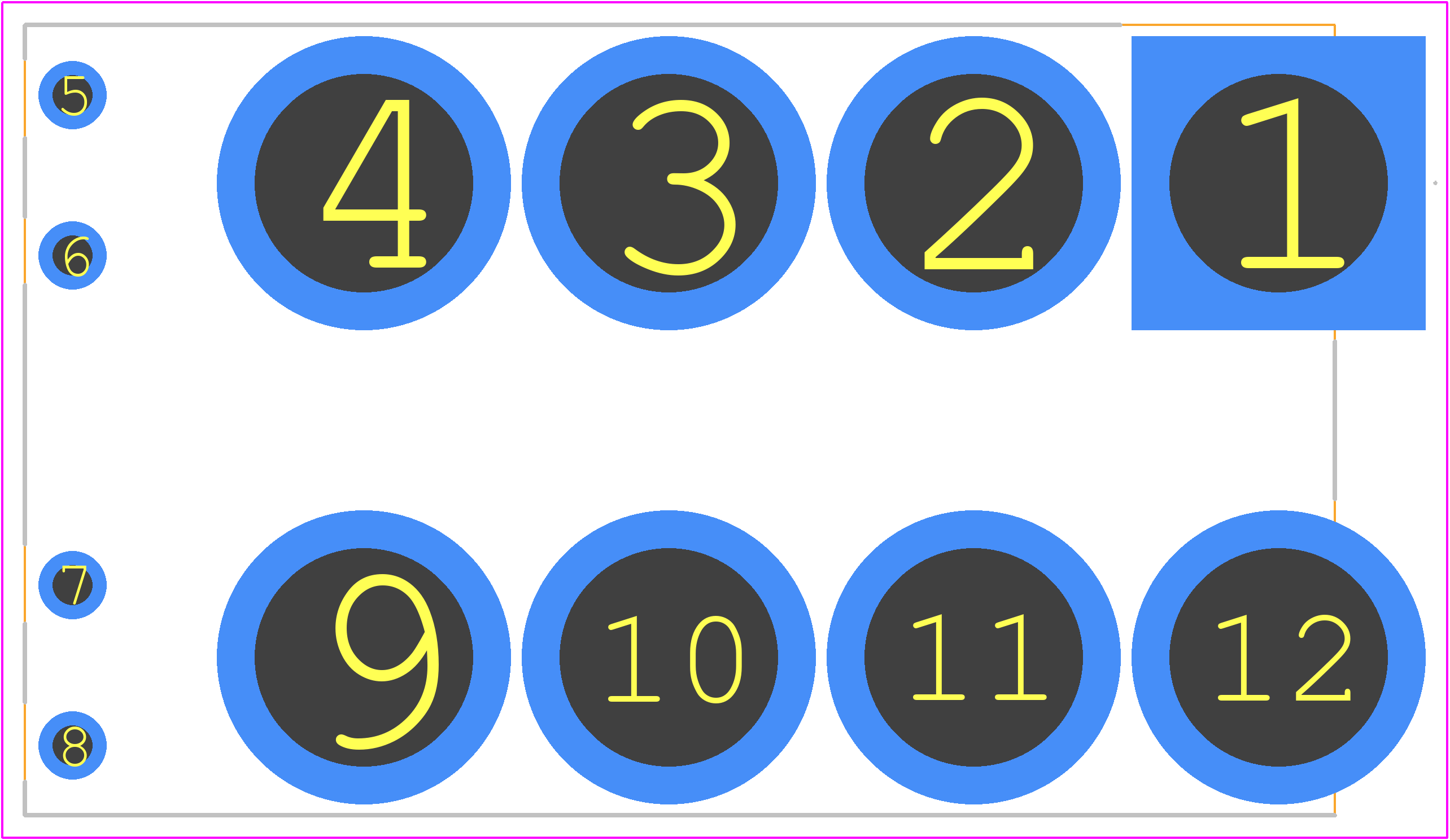

Use the download button to access the AHER4192 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHER4,
or try a keyword search, such as Power/Signal Relays
