AHES3191 - Panasonic

AHES3191 Details

• Manufacturer Part Number:

  AHES3191

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.75

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7.4

• Body Breadth:

  30 mm

• Body Height:

  40 mm

• Body Length or Diameter:

  36 mm

• Coil Current(DC)-Max:

  0.157 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  1880 mW

• Coil Release Voltage(DC):

  0.6 V

• Coil Resistance:

  76.6 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  11080VA@480VAC

• Contact (AC) Max Rating R Load:

  35A@480VAC

• Contact Current(AC)-Max:

  35 A

• Contact Current(DC)-Max:

  35 A

• Contact (DC) Max Power Rating R Load:

  550W@110VDC

• Contact (DC) Max Rating R Load:

  35A@110VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  480 V

• Contact Voltage(DC)-Max:

  110 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

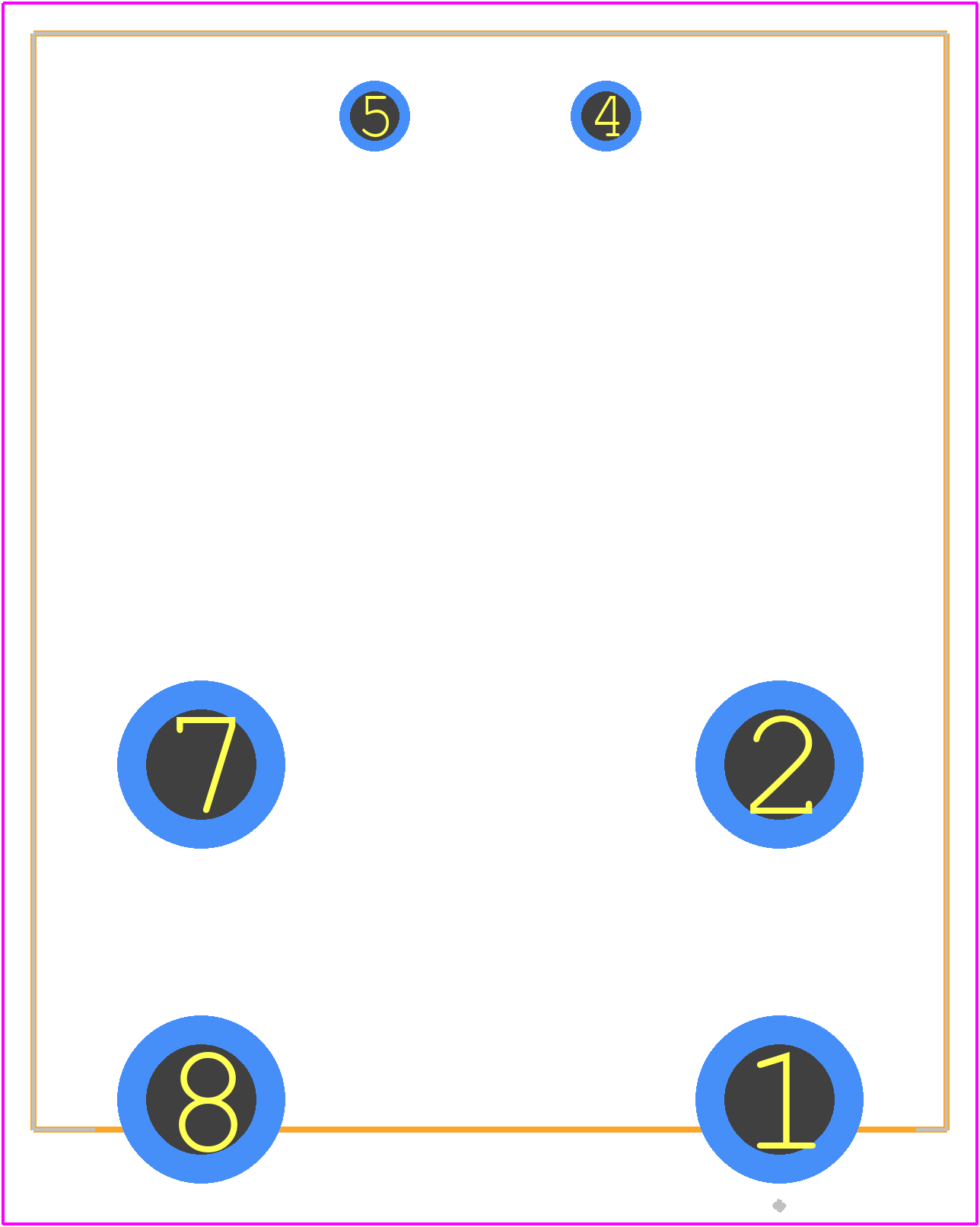

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  6

• Operate Time:

  30 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  36mm x 30mm x 40mm

• Reference Standard:

  CUL; UL; VDE

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM A

• Relay Function:

  DPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Sealing:

  RT2

• Surface Mount:

  NO

• Terminal Length:

  0.004000508001016002 inch

• Termination Type:

  SOLDER
