Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and GND pins. The layout should also minimize signal traces near the sensor to reduce noise and interference.
Calibration involves applying a known magnetic field to the sensor and adjusting the offset and sensitivity registers accordingly. Panasonic provides a calibration procedure in the application note, which involves applying a ±1000 μT magnetic field and measuring the output voltage.
While the datasheet specifies an operating temperature range of -20°C to 85°C, Panasonic recommends derating the sensor's accuracy and sensitivity above 70°C. For high-reliability applications, it's recommended to operate the sensor within the -10°C to 60°C range.
Yes, the AHES3291Q is designed to operate in high-vibration environments. However, it's essential to ensure the sensor is properly mounted and secured to the PCB to prevent mechanical stress and damage. Panasonic recommends following the recommended mounting procedure outlined in the datasheet.
To minimize EMI, Panasonic recommends using a shielded cable for the sensor's output, keeping the sensor away from high-frequency components, and using a common-mode choke or ferrite bead on the power supply lines. Additionally, ensure the PCB layout follows good EMI design practices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AHES3291Q Overview

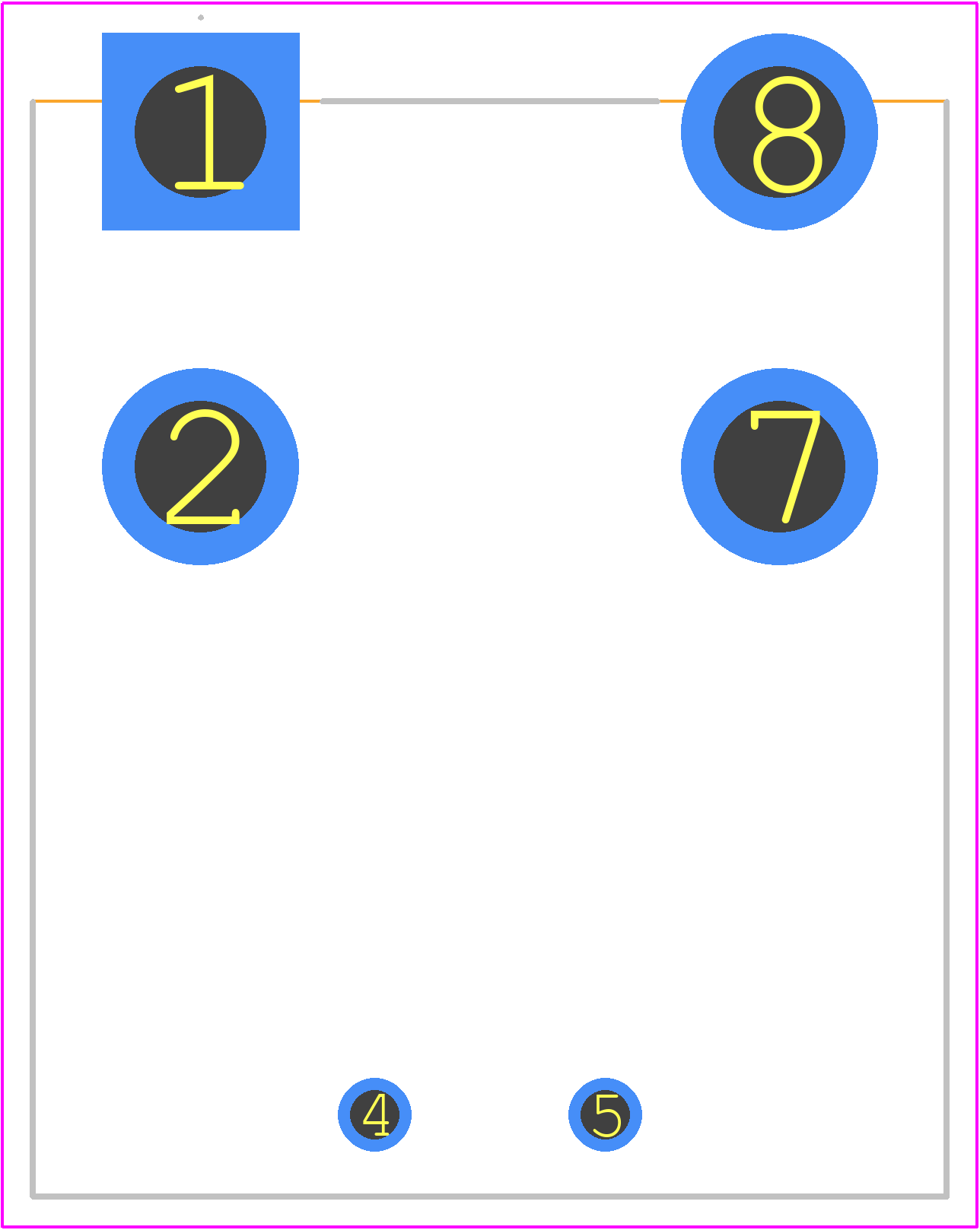

Use the download button to access the AHES3291Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHES3,
or try a keyword search, such as Power/Signal Relays
