A symmetrical layout with a solid ground plane, minimal signal trace length, and a decoupling capacitor (e.g., 10uF) close to the VCC pin is recommended for optimal performance and noise reduction.
To ensure accurate magnetic field detection, ensure the sensor is properly calibrated, the magnetic field is perpendicular to the sensor, and the sensor is not exposed to external interference (e.g., vibration, temperature fluctuations).
The maximum operating temperature range for AHES3292 is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance and reliability.
While AHES3292 is designed to be robust, it's recommended to take additional measures to secure the sensor and PCB in high-vibration environments (e.g., using a vibration-dampening material, securing the PCB to a stable surface).
AHES3292 can be interfaced with a microcontroller using a standard I2C or SPI interface. Ensure the microcontroller's communication protocol matches the sensor's interface, and use a level shifter if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AHES3292 Overview

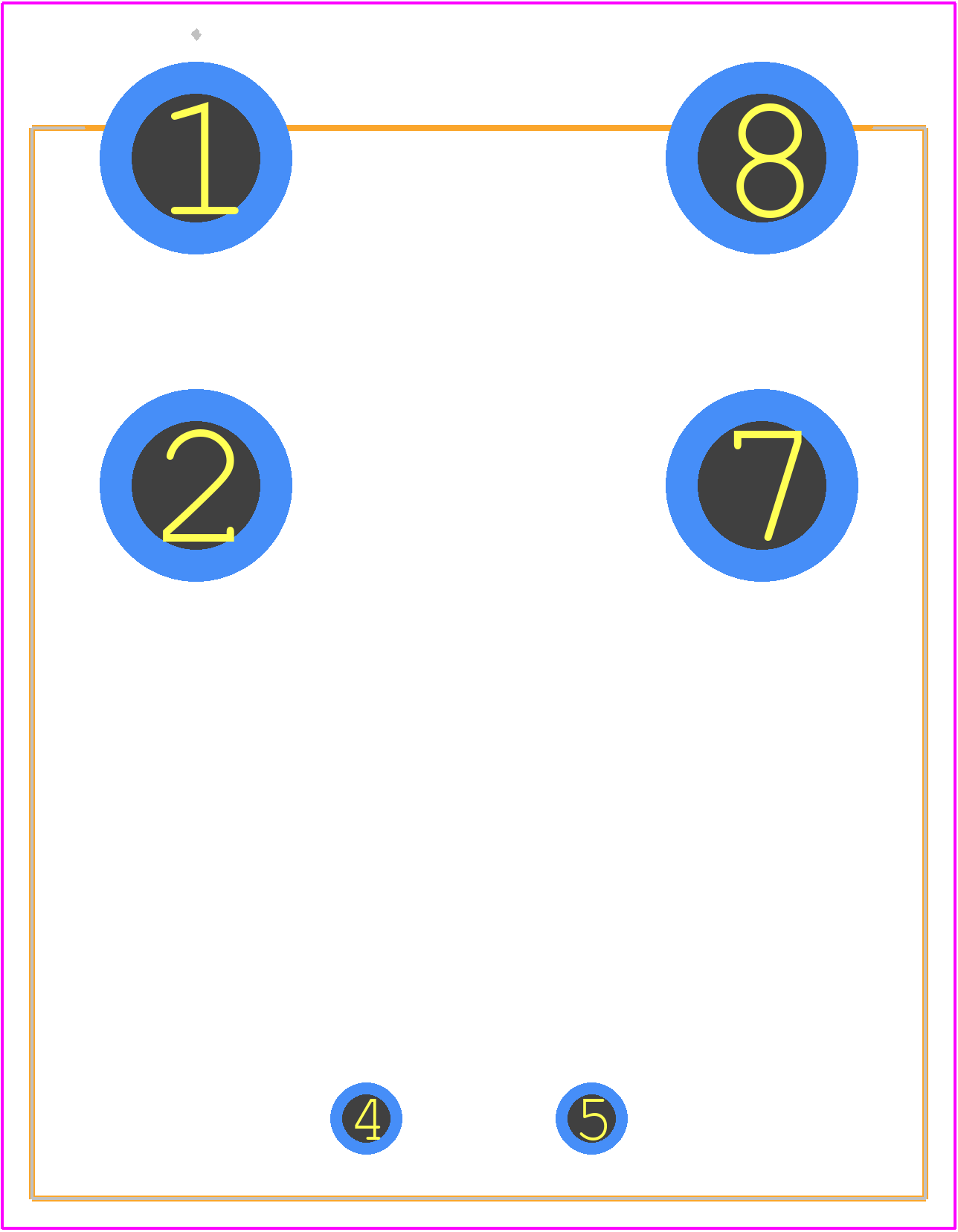

Use the download button to access the AHES3292 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHES3,
or try a keyword search, such as Power/Signal Relays
