AHES4295 - Panasonic

Description: General Purpose Relay 3PST-2NO/1NC (2 Form A, 1 Form B) 9VDC Coil Through Hole 40 A 209 mA PC Pin 43.1 Ohms -40°C ~ 70°C

Download AHES4295 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

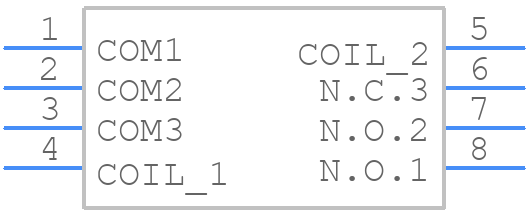

AHES4295 - Panasonic - PCB symbol
click to zoom
PCB Footprints

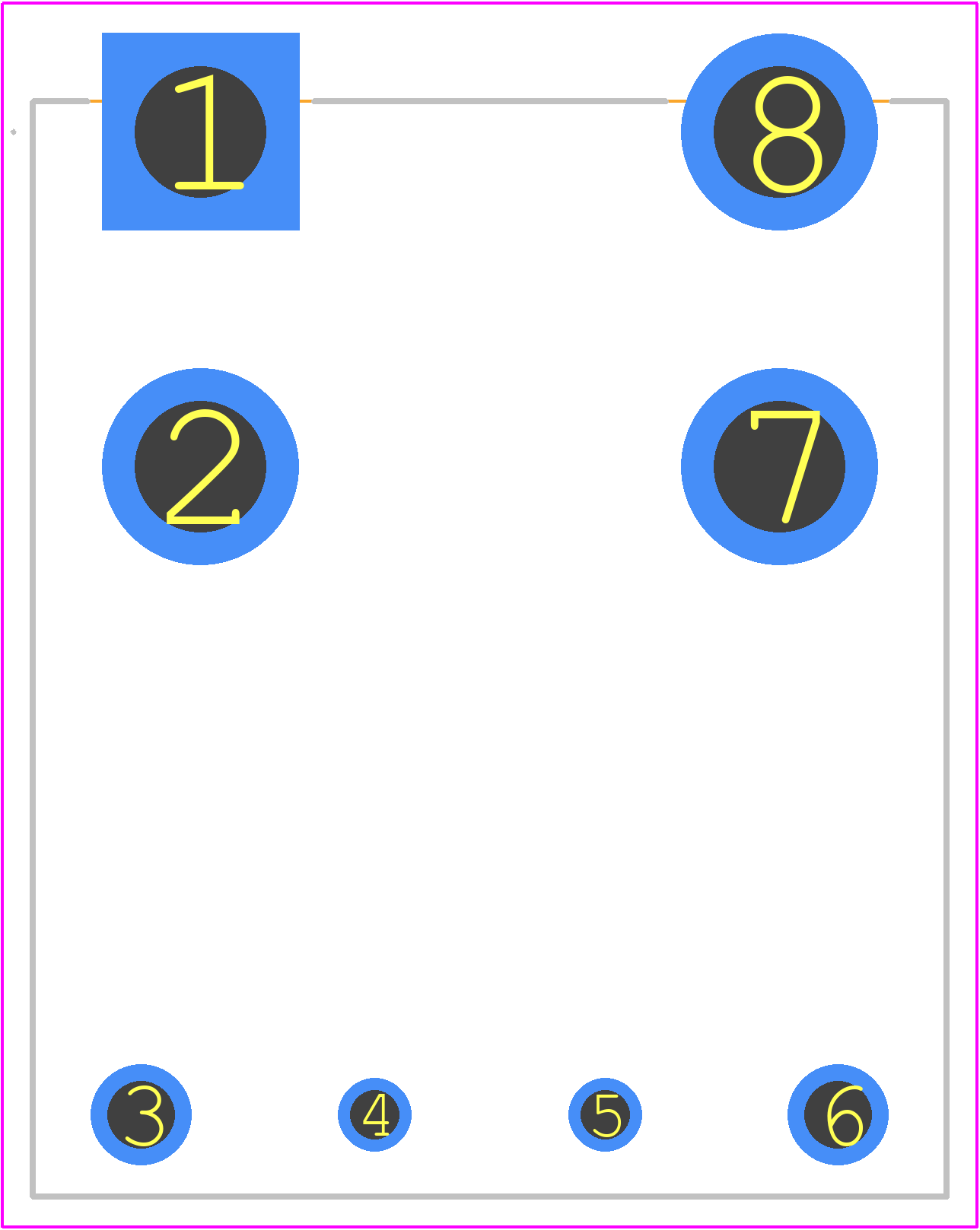

AHES4295 - Panasonic PCB footprint - Other - Other - AHES4295-2
click to zoom
3D Models
AHES4295 - Panasonic - 3D model - Other - AHES4295-2
click to zoom

AHES4295 Details

  • Manufacturer Part Number:

    AHES4295

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Relay Type:

    POWER/SIGNAL RELAY

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AHES4295 Overview

Use the download button to access the AHES4295 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AHES4, or try a keyword search, such as Power/Signal Relays
