AHV85000-40 - Allegro Microsystems

Description: SIP DC-DC converter for SiC MOSFET drivers with 12 V input, dual isolated outputs +20 V / –4 V @ 100 mA, 3.5 kVAC isolation, 80% efficiency, –40 °C to +105 °C operation, 3.5 pF isolation capacitance, and 19.5×9.8×12.5 mm dimensions with built-in SCP and EMC Class B compliance.

Download AHV85000-40 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AHV85000-40 model

Email notifications will be applied after download.

Send part feedback

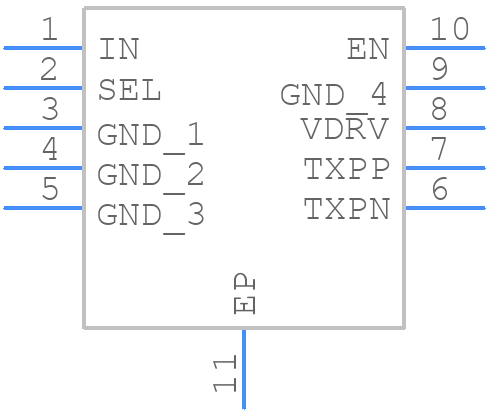

Symbol

AHV85000-40 - Allegro Microsystems - PCB symbol

PCB Footprints

AHV85000-40 - Allegro Microsystems PCB footprint - Small Outline No-lead - Small Outline No-lead - EJ,10-Contact DFN.

3D Models

AHV85000-40 - Allegro Microsystems - 3D model - Small Outline No-lead - EJ,10-Contact DFN.

Datasheet Download Datasheet
Stock & Prices Price & Stock for AHV85000-40
Part Number AHV85000-40
Manufacturer Allegro Microsystems
Pin Count 11
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - EJ,10-Contact DFN.
Released Date Jun 20, 2025
Last Modified Date Jun 20, 2025 9:12 AM UTC
