AHV85000GEJSR - Allegro Microsystems

Description: Galvanically Isolated Gate Drivers GaNFET Isolated Driver Chipset, primary chip

Download AHV85000GEJSR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AHV85000GEJSR model

Email notifications will be applied after download.

Send part feedback

Symbol

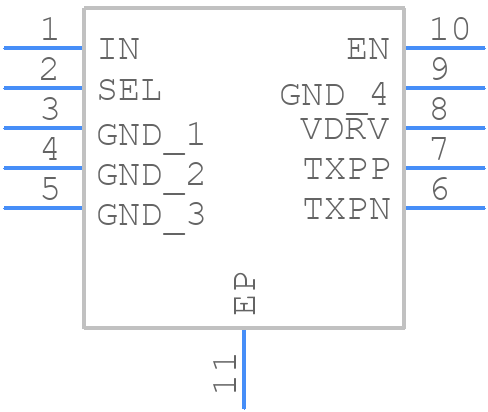

AHV85000GEJSR - Allegro Microsystems - PCB symbol

PCB Footprints

AHV85000GEJSR - Allegro Microsystems PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-pin DFN 3mm x 3mm

3D Models

AHV85000GEJSR - Allegro Microsystems - 3D model - Small Outline No-lead - 10-pin DFN 3mm x 3mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for AHV85000GEJSR
Part Number AHV85000GEJSR
Manufacturer Allegro Microsystems
Pin Count 11
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 10-pin DFN 3mm x 3mm
Released Date Sep 9, 2024
Last Modified Date Sep 9, 2024 2:14 PM UTC
