OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.0106 Vrms
Screening Level:
EN/UL 62368-1
Seated Height-Max:
13.95 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
2400 W
Trim/Adjustable Output:
YES
Width:
61 mm
AIF06ZPFC-01L Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal management for the AIF06ZPFC-01L involve keeping the device away from heat sources, using a multi-layer PCB with a solid ground plane, and ensuring good airflow around the device. A thermal pad or heat sink can be used to dissipate heat. Consult the application note or contact Advanced Energy Industries Inc for more detailed guidance.
To ensure EMC with the AIF06ZPFC-01L, follow proper PCB design and layout practices, use shielding and filtering as necessary, and ensure that the device is operated within its specified frequency range. Additionally, consult the relevant EMC standards and regulations for your application.
The reliability and MTBF of the AIF06ZPFC-01L are dependent on various factors, including operating conditions, environmental factors, and quality of the PCB assembly. Advanced Energy Industries Inc provides reliability data and MTBF estimates in their documentation or upon request. Consult with their technical support for more information.
The AIF06ZPFC-01L is designed to operate in standard industrial environments. For high-vibration or high-shock environments, additional mechanical considerations and testing may be necessary to ensure the device's reliability and performance. Consult with Advanced Energy Industries Inc or a qualified mechanical engineer for guidance.
Yes, the AIF06ZPFC-01L requires proper handling and safety precautions to avoid electrical shock, damage, or injury. Follow standard electrostatic discharge (ESD) precautions, handle the device by the body or pins, and avoid touching internal components. Consult the datasheet and relevant safety standards for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AIF06ZPFC-01L Overview

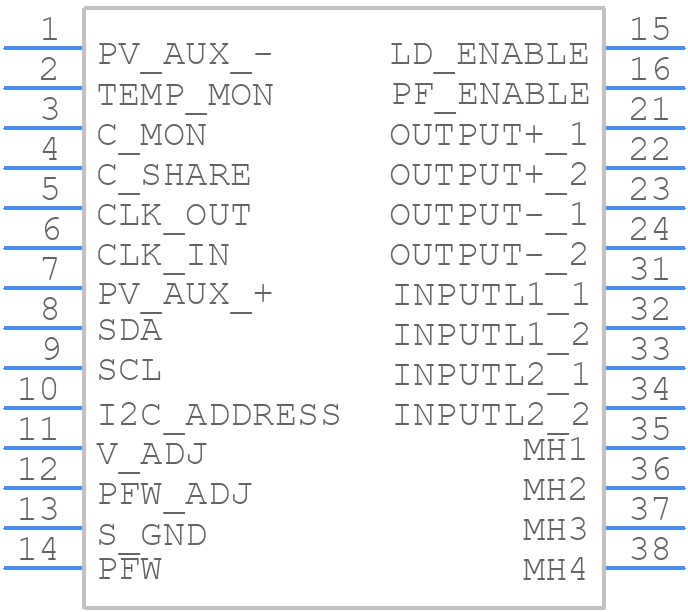

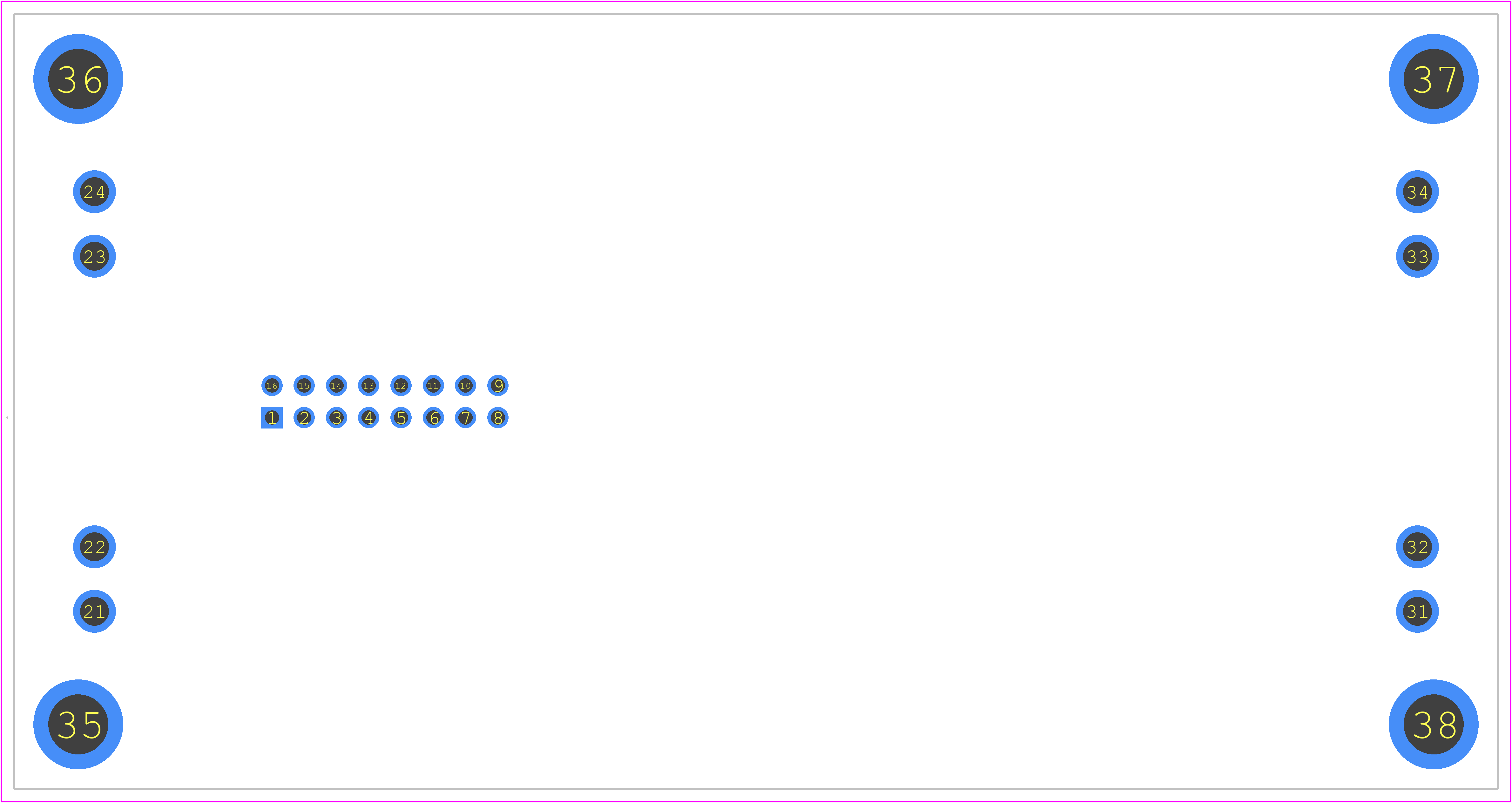

Use the download button to access the AIF06ZPFC-01L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIF06,
or try a keyword search, such as Power Supply Modules
