AIRD-02-101K footprint, schematic symbol and 3D model by ABRACON

Symbol

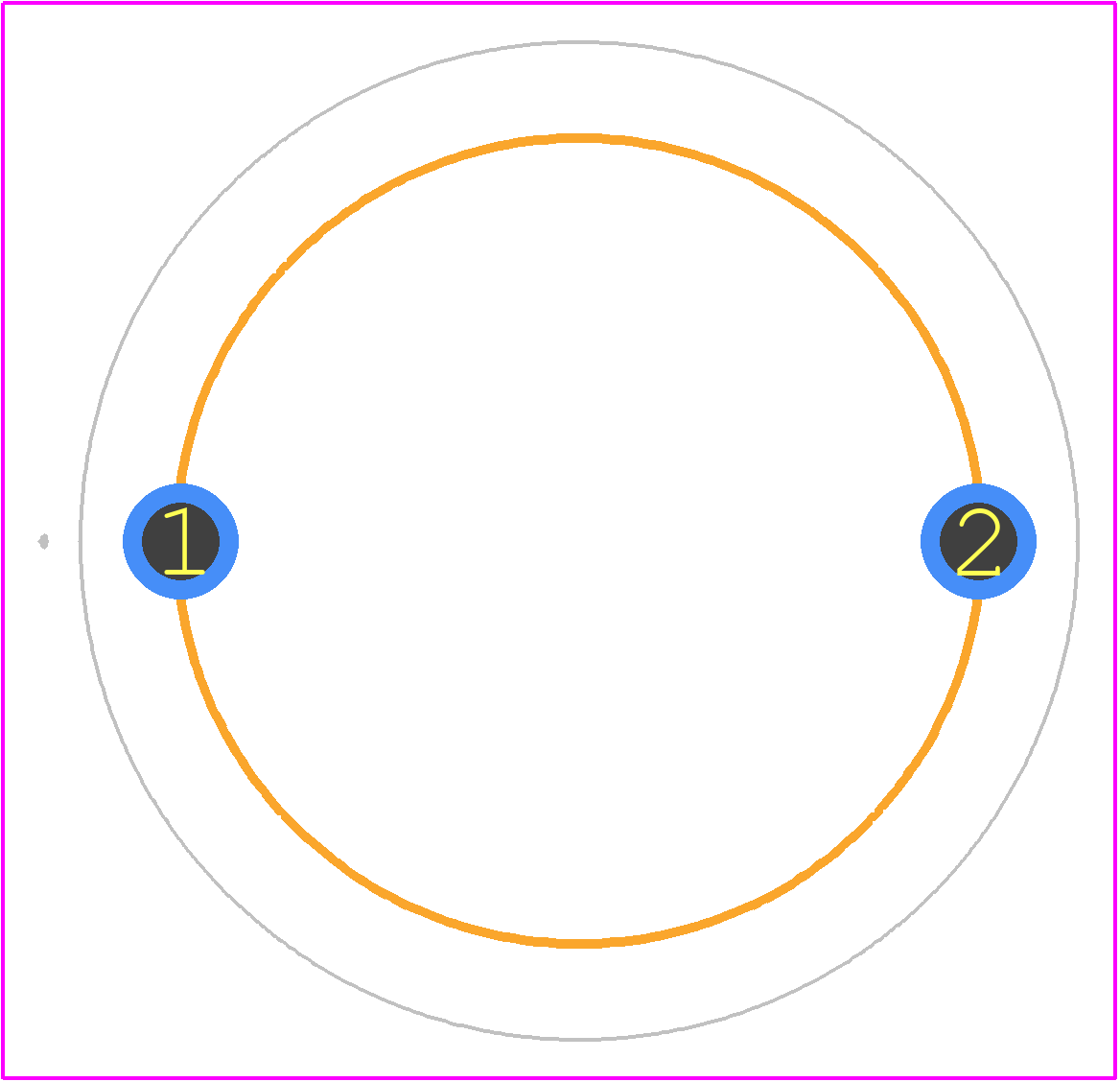

PCB Footprints

3D Models

AIRD-02-101K Details

Abracon recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
To prevent moisture-related issues, store the AIRD-02-101K in a dry, sealed package or bag with desiccant. Avoid exposing the device to high humidity or moisture during handling, and follow proper soldering and cleaning procedures to minimize moisture ingress.
The AIRD-02-101K is rated for operation from -40°C to +125°C, but it's essential to consider the specific application's temperature requirements and potential thermal gradients to ensure reliable performance.
While the AIRD-02-101K is designed to be robust, it's still important to consider the specific vibration requirements of your application. Abracon recommends following the recommended mounting and soldering procedures to ensure the device can withstand vibrations up to 10G.
To troubleshoot frequency stability issues, check the device's power supply, decoupling, and grounding. Ensure that the AIRD-02-101K is properly soldered and mounted, and verify that the surrounding components are not causing electromagnetic interference (EMI).

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AIRD-02-101K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-, or try a keyword search, such as Fixed Inductors
