AIRD-02-150K footprint, schematic symbol and 3D model by ABRACON

Symbol

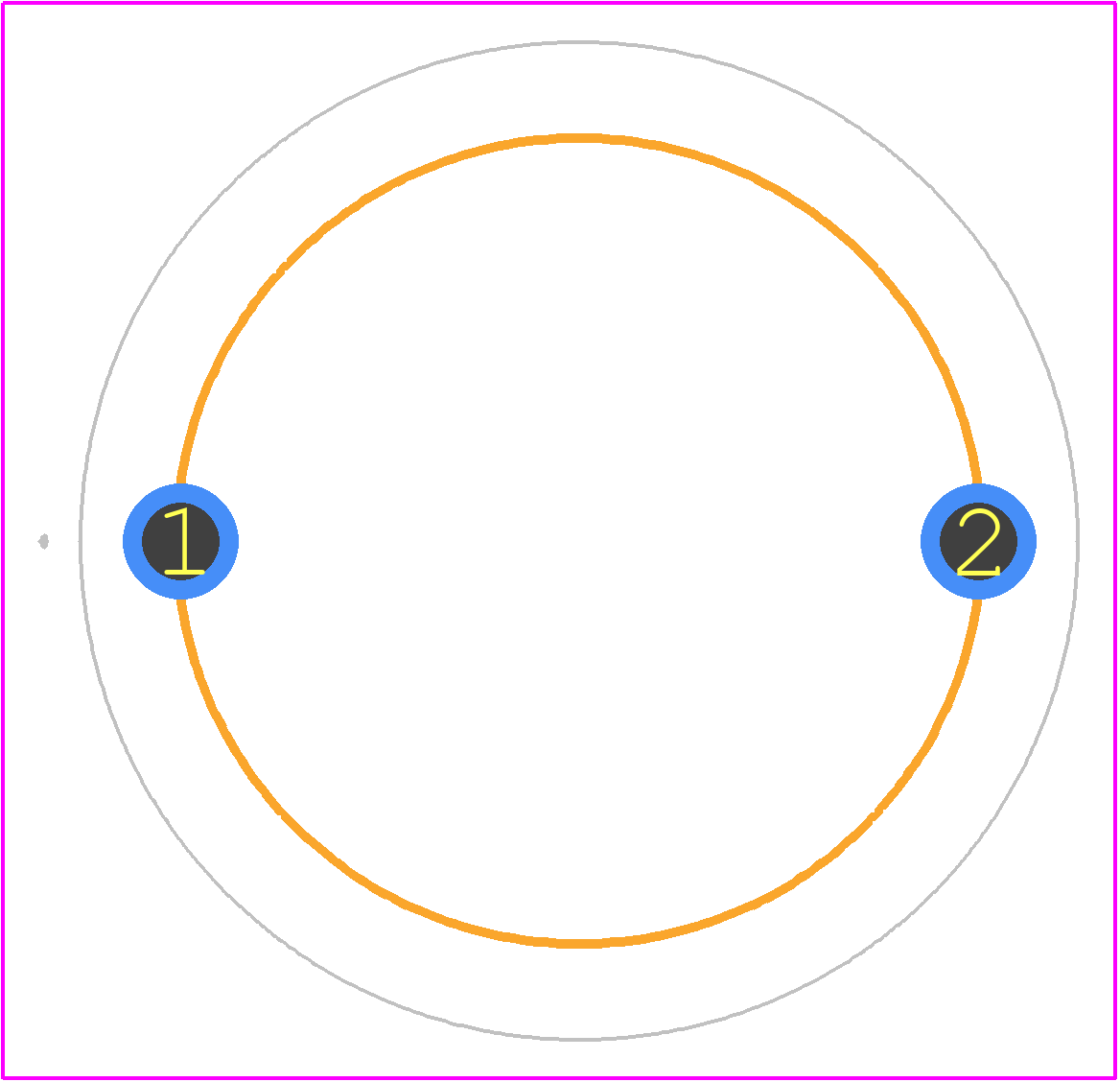

PCB Footprints

3D Models

AIRD-02-150K Details

Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
To minimize high frequency noise and EMI, use proper PCB layout techniques such as grounding, shielding, and decoupling. Additionally, consider using a common-mode choke or a ferrite bead in series with the antenna to filter out high-frequency noise.
The AIRD-02-150K is rated for operation from -40°C to +85°C, but it's recommended to derate the power handling at higher temperatures to ensure reliable operation and prevent thermal damage.
While the AIRD-02-150K is designed to operate in a variety of environments, it's not recommended for use in extremely humid or high-moisture environments. If operation in such conditions is necessary, consider applying a conformal coating or using a hermetically sealed package to protect the device.
The AIRD-02-150K has a nominal impedance of 50 ohms. To match the impedance, use a pi-network or a series/parallel LC circuit to achieve the desired impedance match. Consult Abracon's application notes or seek guidance from a qualified RF engineer for specific design guidance.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AIRD-02-150K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-, or try a keyword search, such as Fixed Inductors
