AIRD-02-271K Frequently Asked Questions (FAQs)

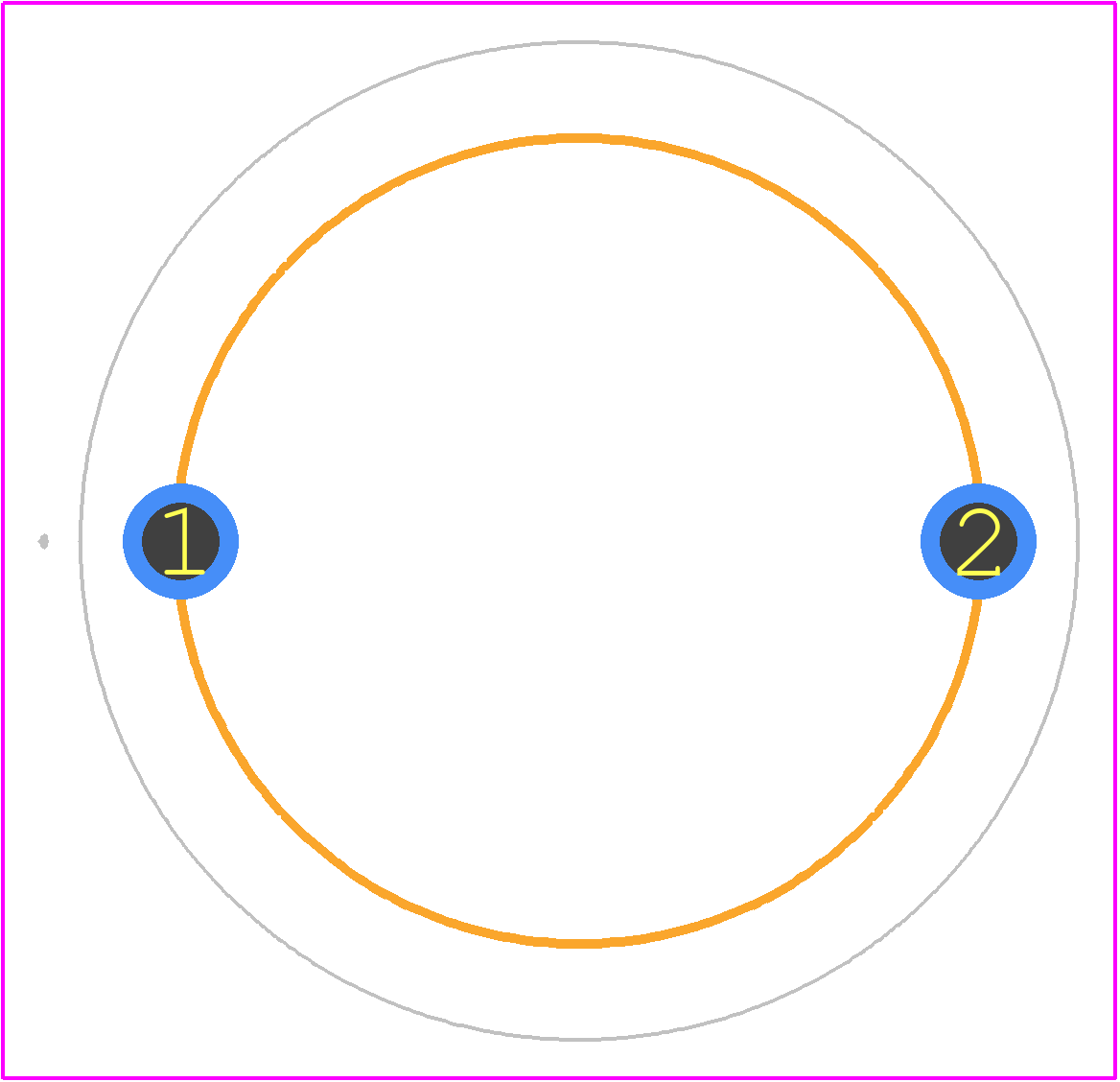

• What is the recommended PCB land pattern for the AIRD-02-271K?
  Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
• How do I handle the AIRD-02-271K during reflow soldering?
  To prevent damage, Abracon recommends following a reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds. The component should be placed on the PCB with the markings facing upwards.
• What is the maximum operating temperature range for the AIRD-02-271K?
  The AIRD-02-271K can operate safely within a temperature range of -40°C to +125°C (-40°F to +257°F), but the recommended operating temperature range is -20°C to +85°C (-4°F to +185°F) for optimal performance and reliability.
• Can I use the AIRD-02-271K in a high-vibration environment?
  Yes, the AIRD-02-271K is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) and can be used in high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliability.
• Is the AIRD-02-271K compatible with lead-free soldering processes?
  Yes, the AIRD-02-271K is compatible with lead-free soldering processes and is RoHS compliant, making it suitable for use in environmentally friendly designs.
