Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
To prevent moisture-related issues, store the AIRD-02-471K in a dry, sealed package or bag with desiccant. During assembly, ensure the PCB is clean and dry, and avoid exposing the component to high humidity or moisture during the soldering process.
While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the component's performance and reliability may degrade above 70°C. For optimal performance, it's recommended to operate the AIRD-02-471K within the -20°C to +60°C range.
Yes, the AIRD-02-471K is designed to withstand moderate vibration levels. However, it's crucial to ensure the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method to prevent mechanical stress and damage.
To troubleshoot frequency stability issues, verify the component's power supply voltage, ensure proper PCB layout and decoupling, and check for any nearby noise sources or interference. Also, consult the application notes and Abracon's technical support resources for guidance on optimizing the AIRD-02-471K's performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AIRD-02-471K Overview

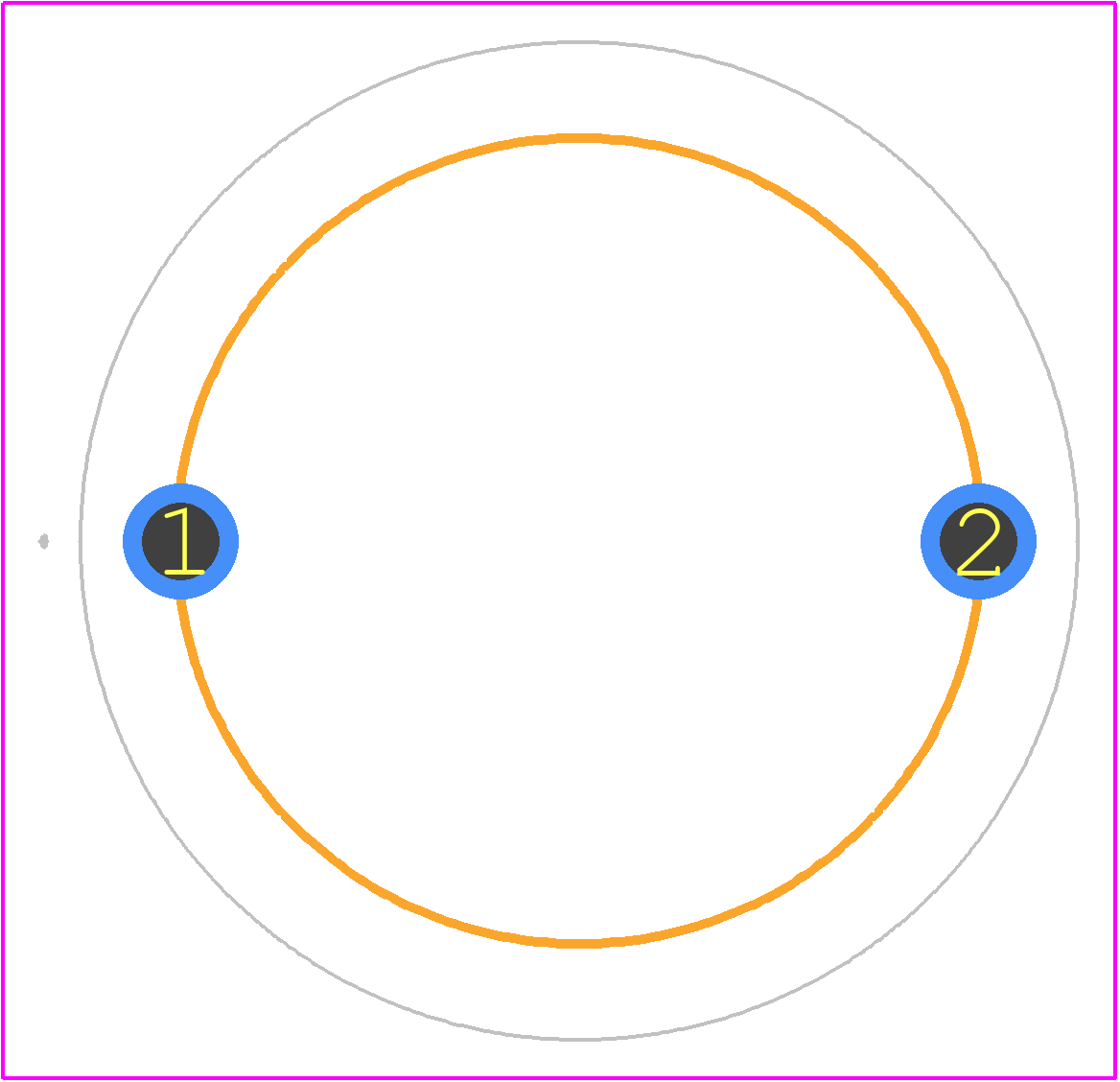

Use the download button to access the AIRD-02-471K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-,
or try a keyword search, such as Fixed Inductors
