AIRD-02-561K Frequently Asked Questions (FAQs)

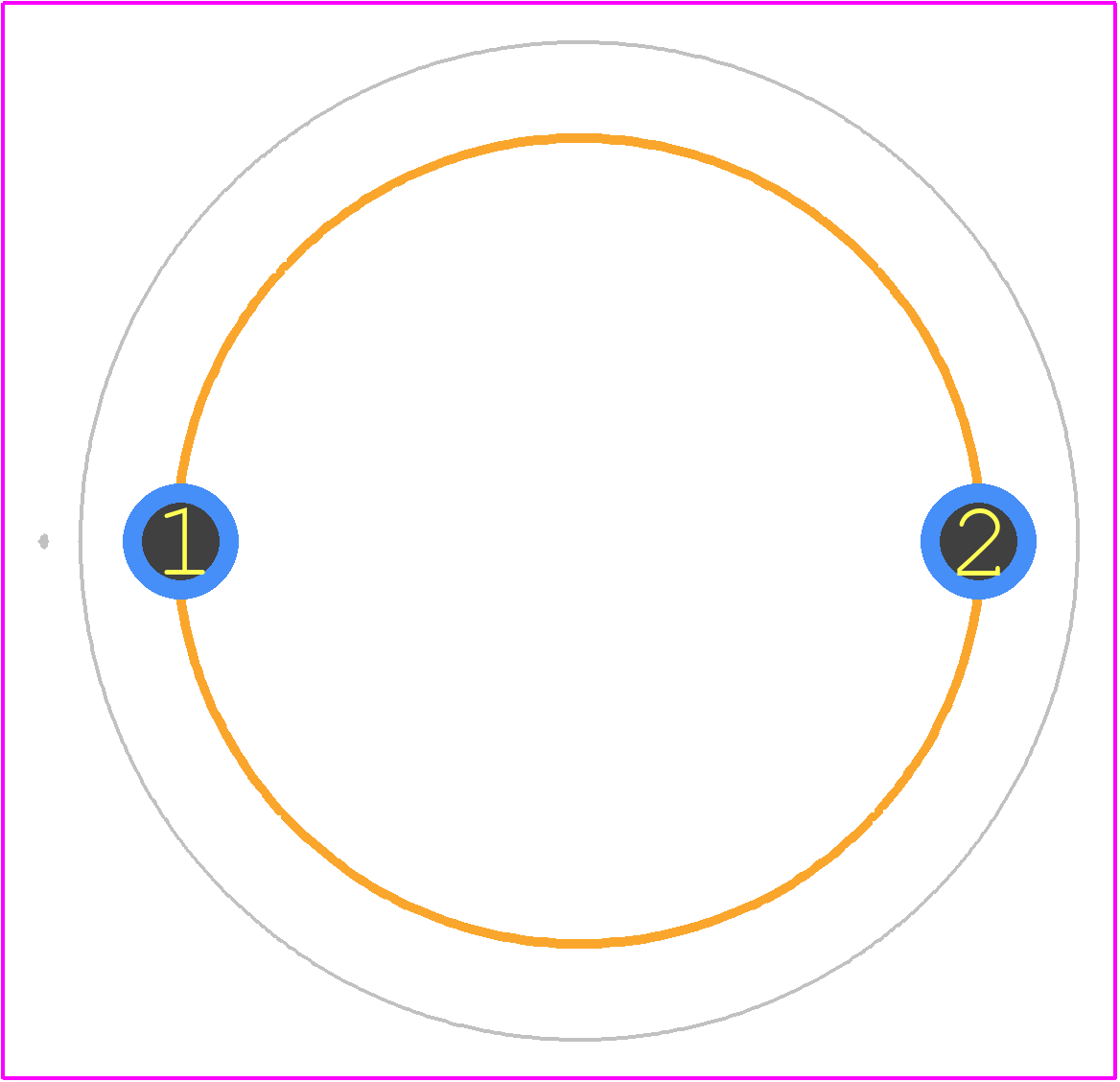

• What is the recommended PCB land pattern for the AIRD-02-561K?
  Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
• How do I handle the AIRD-02-561K during reflow soldering?
  To prevent damage, Abracon recommends following a reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds. The component should be placed on the PCB with the markings facing upwards.
• What is the operating temperature range for the AIRD-02-561K?
  The AIRD-02-561K is rated for operation from -40°C to +85°C (-40°F to +185°F), but it's recommended to derate the frequency and power handling at higher temperatures to ensure reliable operation.
• Can I use the AIRD-02-561K in a high-vibration environment?
  Yes, the AIRD-02-561K is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 2kHz. However, it's recommended to perform additional testing and validation for specific vibration profiles.
• How do I ensure the AIRD-02-561K meets my specific EMI and RFI requirements?
  Abracon recommends following proper PCB design and layout guidelines, using shielding and grounding techniques, and performing EMI and RFI testing to ensure compliance with specific regulations and standards.
