Abracon recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
Store the AIRD-02-681K in a dry, nitrogen-filled environment or use a desiccant to maintain a relative humidity below 20%. During assembly, follow standard moisture-sensitive device handling procedures, such as baking the components before reflow soldering.
The AIRD-02-681K is rated for operation from -40°C to +125°C, but it's essential to consider the specific application's thermal requirements and ensure the component is within its recommended operating temperature range to maintain reliability and performance.
While the AIRD-02-681K is designed to be robust, it's still important to consider the specific vibration requirements of your application. Abracon recommends following the guidelines in the datasheet and performing thorough testing to ensure the component can withstand the expected vibration levels.
To troubleshoot frequency stability or accuracy issues, verify the component's operating conditions, including the power supply voltage, temperature, and load capacitance. Also, ensure the PCB layout and design meet the recommended guidelines, and consider using a crystal oscillator simulator tool to help identify potential issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AIRD-02-681K Overview

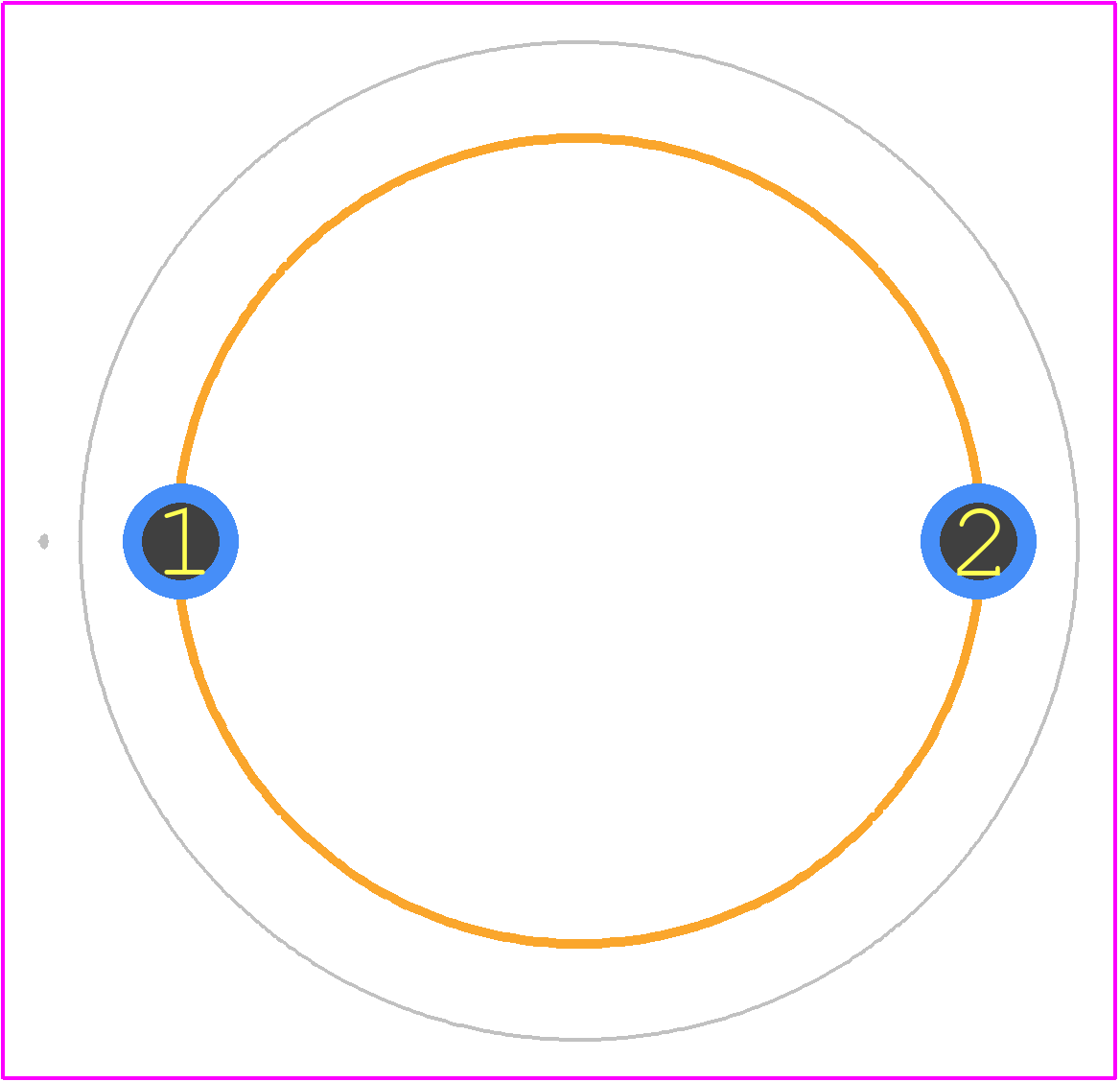

Use the download button to access the AIRD-02-681K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-,
or try a keyword search, such as Fixed Inductors
