AIRD-03-122K Frequently Asked Questions (FAQs)

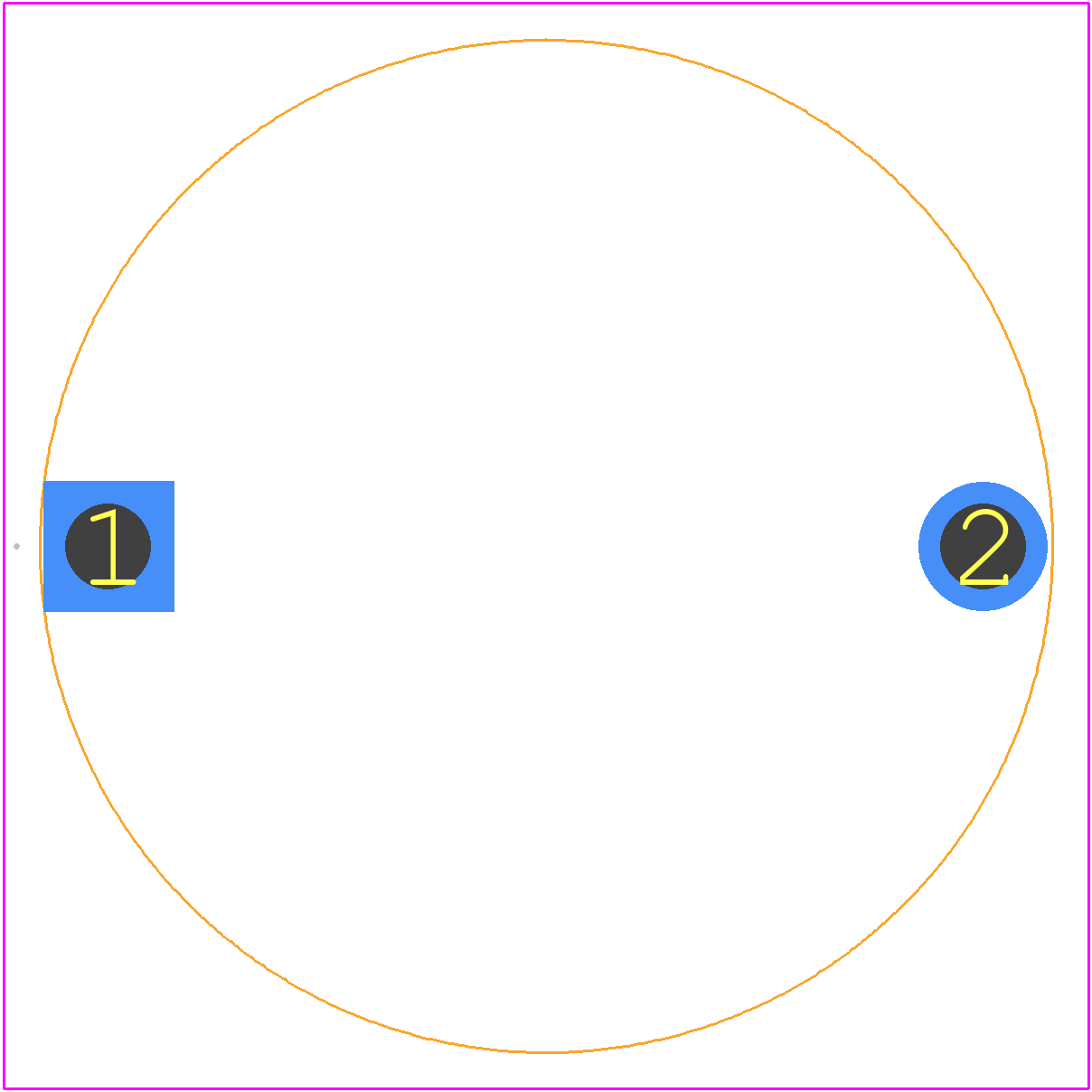

• What is the recommended PCB land pattern for the AIRD-03-122K?
  Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
• How do I handle the AIRD-03-122K during reflow soldering?
  To prevent damage, Abracon recommends following a reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds. The component should be placed on a flat, even surface to prevent warping or damage.
• What is the maximum operating temperature range for the AIRD-03-122K?
  The AIRD-03-122K is rated for operation from -40°C to +85°C (-40°F to +185°F), but it's essential to note that the device's performance and accuracy may degrade at extreme temperatures.
• Can I use the AIRD-03-122K in a high-vibration environment?
  While the AIRD-03-122K is designed to be robust, it's still a sensitive electronic component. Abracon recommends following proper mounting and securing procedures to prevent damage or dislodging in high-vibration environments.
• How do I store the AIRD-03-122K to prevent damage or degradation?
  Abracon recommends storing the AIRD-03-122K in a dry, cool place (less than 30°C/86°F and 60% relative humidity) away from direct sunlight and moisture. The component should be stored in its original packaging or a similar ESD-protective package to prevent damage.
