AIRD-03-180K footprint, schematic symbol and 3D model by ABRACON

Symbol

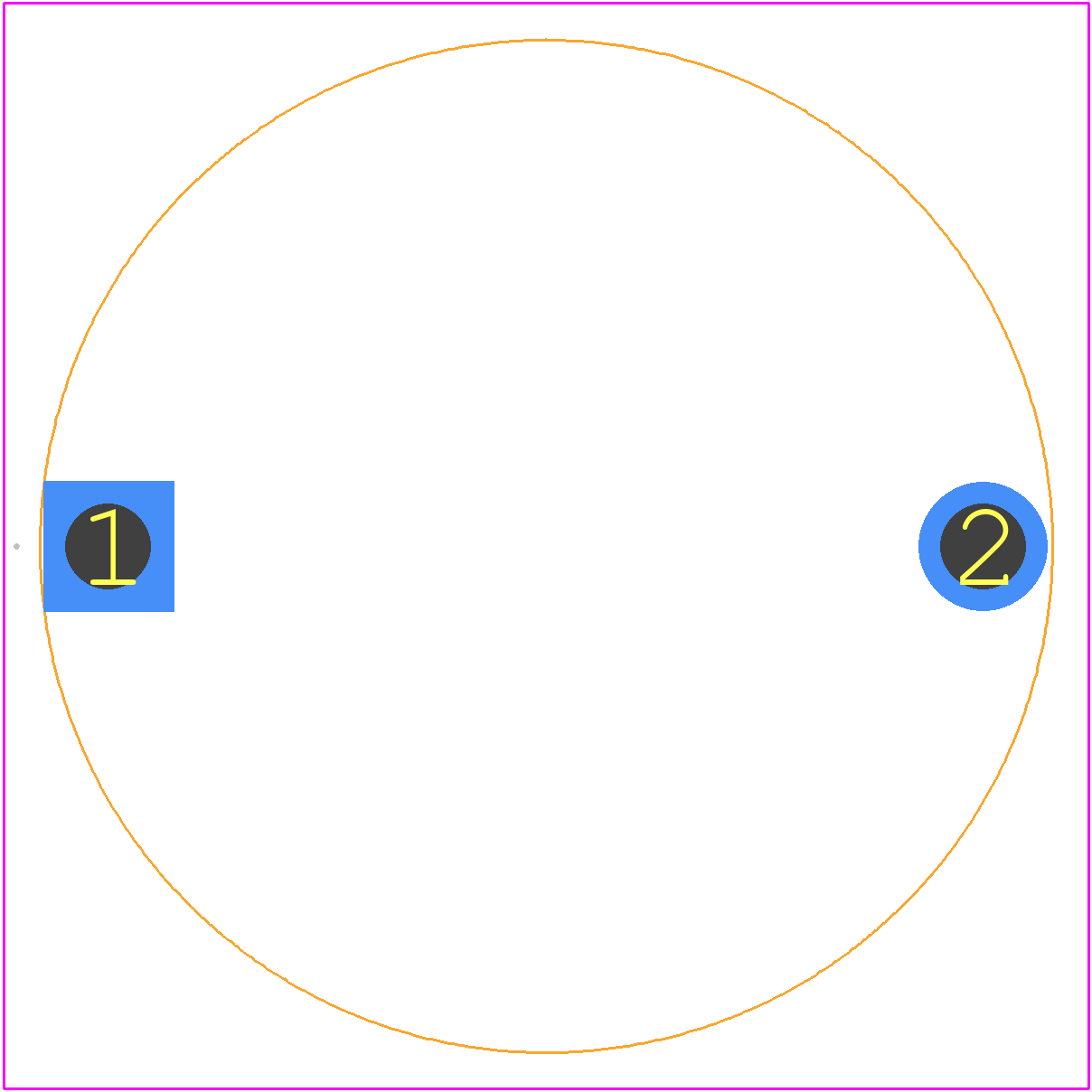

PCB Footprints

3D Models

AIRD-03-180K Details

Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
To prevent damage, Abracon recommends following a reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds. The component should be placed on the PCB with the markings facing upwards.
The AIRD-03-180K is rated for operation from -40°C to +85°C (-40°F to +185°F), but it's recommended to derate the frequency and power handling at higher temperatures to ensure reliable operation.
Yes, the AIRD-03-180K is designed to withstand vibrations up to 10G (10g-force) in the frequency range of 10Hz to 2kHz, making it suitable for use in high-vibration applications.
Abracon recommends following proper PCB design and layout guidelines, using shielding, and implementing EMI filtering to ensure the AIRD-03-180K meets your application's EMI requirements.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AIRD-03-180K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AIRD-, or try a keyword search, such as Fixed Inductors
