AIRD-03-1R2M - ABRACON

Description: FIXED IND 1.2UH 21A 3 MOHM TH

Download AIRD-03-1R2M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AIRD-03-1R2M - ABRACON - PCB symbol
click to zoom
PCB Footprints

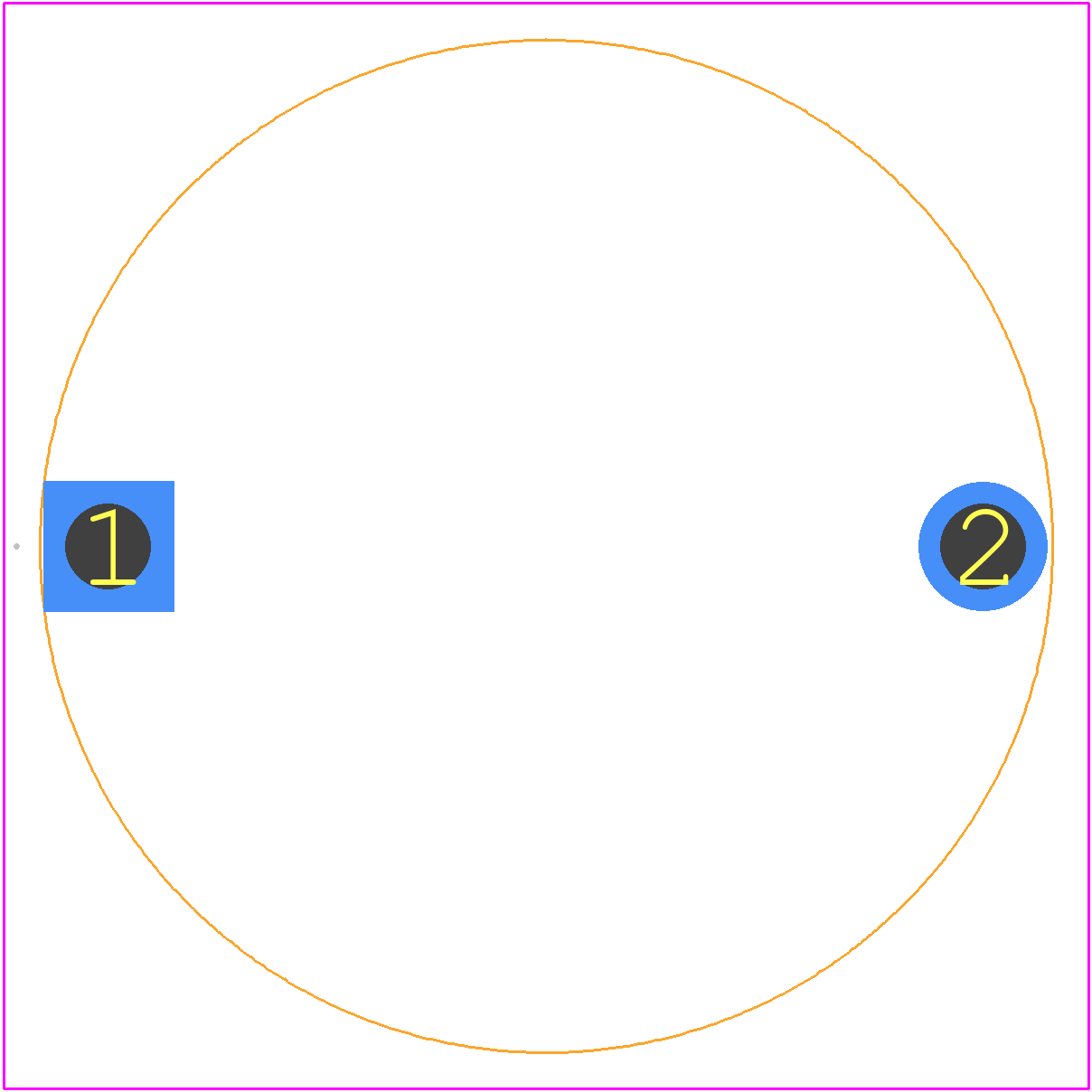

AIRD-03-1R2M - ABRACON PCB footprint - Other - Other - AIRD-03
click to zoom
3D Models
AIRD-03-1R2M - ABRACON - 3D model - Other - AIRD-03
click to zoom

AIRD-03-1R2M Details

  • Manufacturer Part Number:

    AIRD-03-1R2M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Construction:

    Wirewound

  • Core Material:

    FERRITE

  • DC Resistance:

    0.003 Ω

  • Inductance-Nom (L):

    1.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.6 mm

  • Lead Length:

    12.7 mm

  • Lead Spacing:

    22 mm

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Diameter:

    28 mm

  • Package Length:

    22.5 mm

  • Package Style:

    Radial

  • Rated Current-Max:

    21 A

  • Shape/Size Description:

    CYLINDRICAL PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    20%

AIRD-03-1R2M Frequently Asked Questions (FAQs)

  • Abracon recommends a land pattern with a pad size of 1.3mm x 0.8mm and a spacing of 1.5mm between pads. The recommended land pattern is available in the Abracon Application Note AN-03.
  • Yes, the AIRD-03-1R2M is rated for operation up to 125°C. However, the device's accuracy and stability may degrade at higher temperatures. It's essential to consult the datasheet and application notes for specific guidance on high-temperature operation.
  • The AIRD-03-1R2M is designed to be EMI-resistant, with a shielded package that helps to reduce electromagnetic radiation. However, it's still important to follow proper PCB design and layout practices to minimize EMI effects.
  • Yes, the AIRD-03-1R2M is compatible with lead-free soldering processes, including RoHS and WEEE compliance. Abracon recommends following the recommended soldering profile to ensure reliable assembly.
  • The typical power consumption of the AIRD-03-1R2M is around 1.5mA, but this can vary depending on the specific application and operating conditions. It's essential to consult the datasheet for specific power consumption information.
