AIRD-03-220K - ABRACON

AIRD-03-220K Frequently Asked Questions (FAQs)

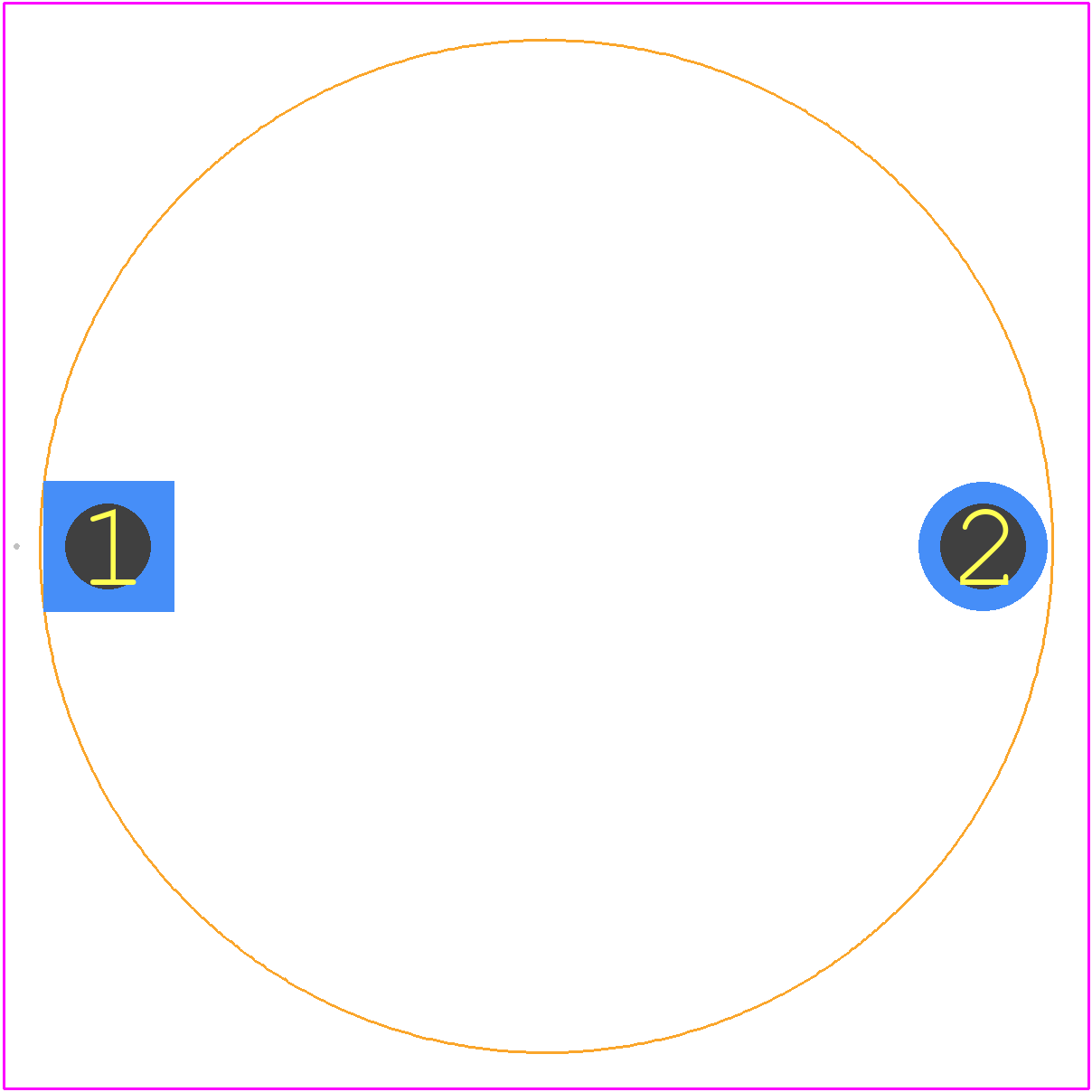

• What is the recommended PCB land pattern for the AIRD-03-220K?
  Abracon recommends a land pattern with a minimum pad size of 1.3mm x 1.3mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and to prevent solder bridging.
• How do I handle the AIRD-03-220K during reflow soldering?
  To prevent damage, Abracon recommends following a reflow soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 30 seconds. The component should be placed on a flat, even surface to prevent warping or damage.
• What is the maximum operating temperature range for the AIRD-03-220K?
  The AIRD-03-220K is rated for operation from -40°C to +125°C (-40°F to +257°F), but it's essential to note that the component's performance may degrade at extreme temperatures.
• Can I use the AIRD-03-220K in a high-vibration environment?
  While the AIRD-03-220K is designed to be robust, it's still susceptible to vibration-induced failures. Abracon recommends following proper mounting and soldering techniques to ensure the component is securely attached to the PCB. Additionally, consider using vibration-dampening materials or potting compounds to reduce the risk of failure.
• How do I store the AIRD-03-220K to prevent moisture absorption?
  To prevent moisture absorption, store the AIRD-03-220K in its original packaging or in a dry, nitrogen-filled environment. Avoid exposing the component to humid or high-temperature environments, and follow Abracon's recommended storage conditions.
